CNC Band Saw
| Model | MJS1625 | MJS1620 | MJS1615 | MJS1212 |
| Cutting size (mm) | 2500*1450*180 | 2000*1450*180 | 1500*1450*180 | 1200*1250*180 |
| Blade size (mm) | 5350*16*0.9 | 5350*16*0.9 | 5350*16*0.9 | 5350*16*0.9 |
| Blade swiveling angle | -90°~+90° | -90°~+90° | -90°~+90° | -90°~+90° |
| Cutting speed | 1-15m/min | 1-15m/min | 1-15m/min | 1-15m/min |
| Return speed | 40m/min | 40m/min | 40m/min | 40m/min |
| Saw wheel size | 700*60mm | 700*60mm | 700*60mm | 700*60mm |
| Saw wheel rotation speed | 450-850RPM | 450-850RPM | 450-850RPM | 450-850RPM |
| Min. radius of cutting curve | R60mm | R60mm | R60mm | R60mm |
| Cutting motor | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| X axis servo motor | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Y axis servo motor | 2.0KW | 2.0KW | 2.0KW | 1.5KW |
| Z1/Z2 axes servo motor | 0.4KW*2 | 0.4KW*2 | 0.4KW*2 | 0.4KW*2 |
| Weight | 4300KG | 3500KG | 3000KG | 2600KG |
| Dimension (mm) | 5250*3630*2380 | 4250*3630*2380 | 3650*3630*2400 | 2650*3490*2380 |
- Cutting size (mm): 2500*1450*180
- Blade size (mm): 5350*16*0.9
- Blade swiveling angle: -90°~+90°
- Cutting speed: 1-15m/min
- Return speed 40m/min
- Saw wheel size: 700*60mm
- Saw wheel rotation speed: 450-850RPM
- Min. radius of cutting curve: R60mm
- Cutting motor: 7.5KW
- X axis servo motor: 2.3KW
- Y axis servo motor: 2.0KW
- Z1/Z2 axes servo motor: 0.4KW*2
- Weight: 4300KG
- Dimension (mm): 5250*3630*2380
- Cutting size (mm): 2000*1450*180
- Blade size (mm): 5350*16*0.9
- Blade swiveling angle: -90°~+90°
- Cutting speed: 1-15m/min
- Return speed : 40m/min
- Saw wheel size: 700*60mm
- Saw wheel rotation speed: 450-850RPM
- Min. radius of cutting curve: R60mm
- Cutting motor: 7.5KW
- X axis servo motor: 2.3KW
- Y axis servo motor: 2.0KW
- Z1/Z2 axes servo motor: 0.4KW*2
- Weight: 3500KG
- Dimension (mm): 4250*3630*2380
- Cutting size (mm): 1500*1450*180
- Blade size (mm): 5350*16*0.9
- Blade swiveling angle: -90°~+90°
- Cutting speed: 1-15m/min
- Return speed : 40m/min
- Saw wheel size: 700*60mm
- Saw wheel rotation speed: 450-850RPM
- Min. radius of cutting curve: R60mm
- Cutting motor: 7.5KW
- X axis servo motor: 2.3KW
- Y axis servo motor: 2.0KW
- Z1/Z2 axes servo motor: 0.4KW*2
- Weight: 3000KG
- Dimension (mm): 3650*3630*2400
- Cutting size (mm): 1200*1250*180
- Blade size (mm): 5350*16*0.9
- Blade swiveling angle: -90°~+90°
- Cutting speed: 1-15m/min
- Return speed : 40m/min
- Saw wheel size: 700*60mm
- Saw wheel rotation speed: 450-850RPM
- Min. radius of cutting curve: R60mm
- Cutting motor: 7.5KW
- X axis servo motor: 2.3KW
- Y axis servo motor: 1.5KW
- Z1/Z2 axes servo motor: 0.4KW*2
- Weight: 2600KG
- Dimension (mm): 2650*3490*2380

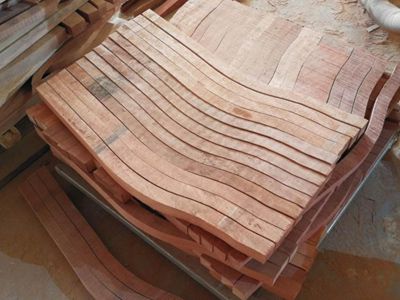

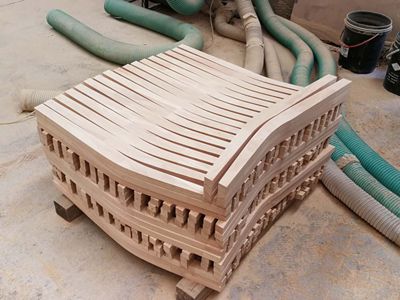

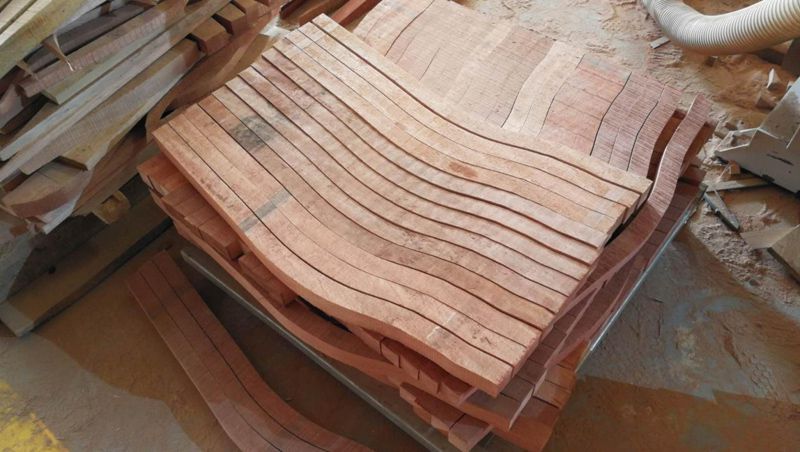

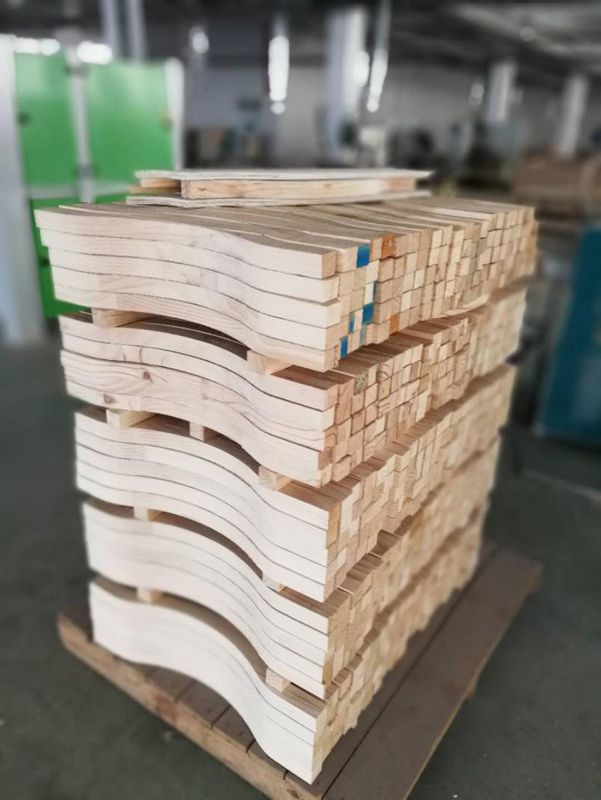

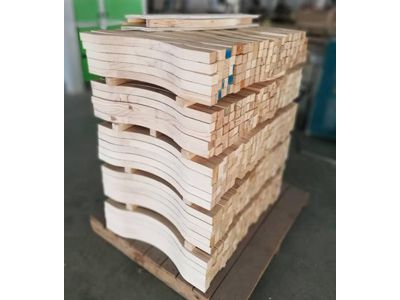

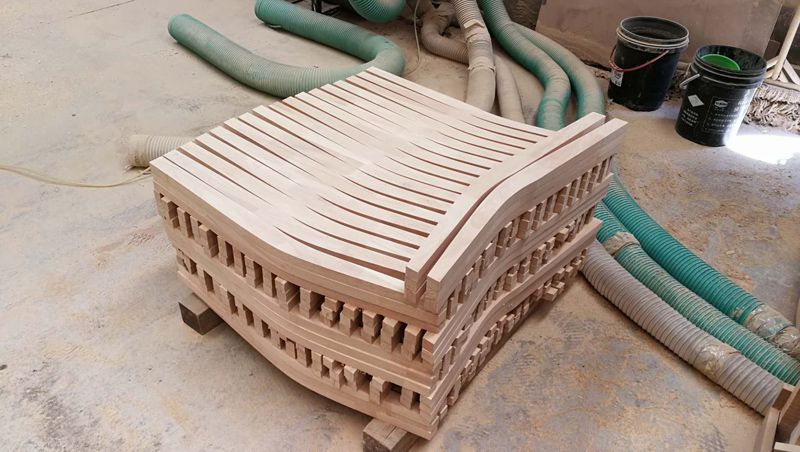

CNC band saw is primarily used for rough cutting of curves in wood, suitable for manufacturing solid wood furniture such as sofas, chairs, bed heads, etc. The small cutting path ensures a higher cutting accuracy, thus greatly reducing the errors caused by manual operation.
-
-

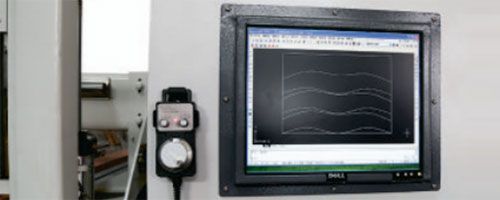

Industrial PC is equipped to directly accomplish CAD drawing and create curved cutting path.
-
-

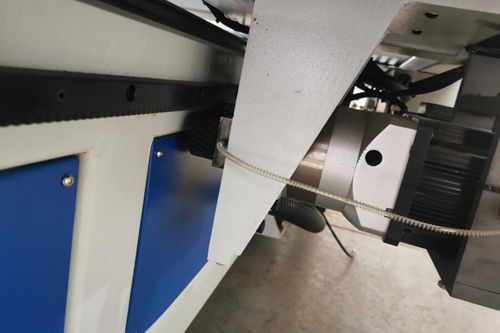

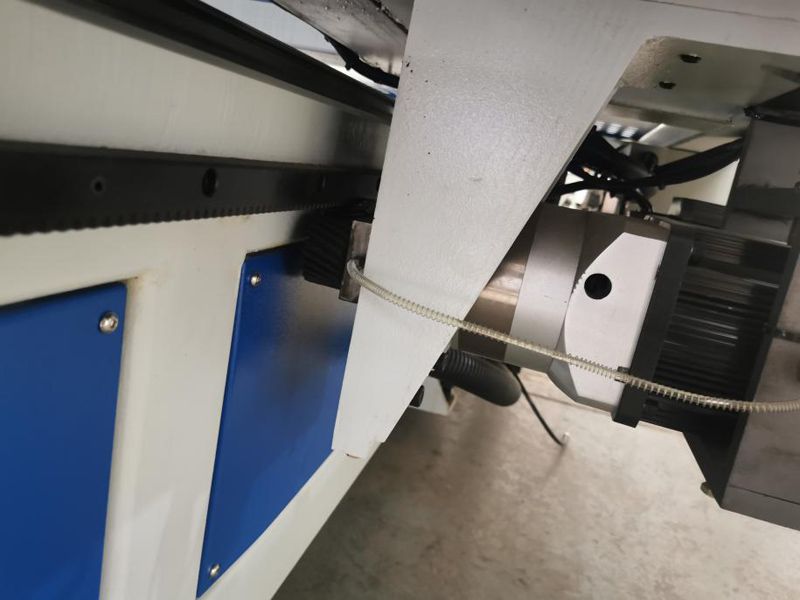

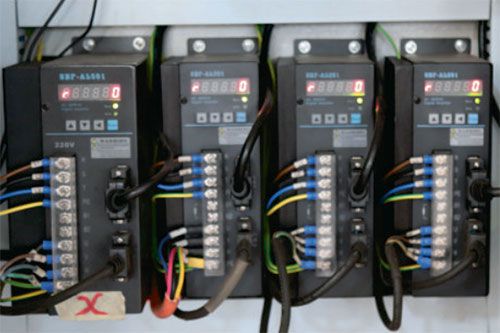

Servo motor is used for quick responding and high cutting efficiency.
-
-
This sawing equipment can cut multitude workpieces simultaneously to further enhance the productivity.
-
-

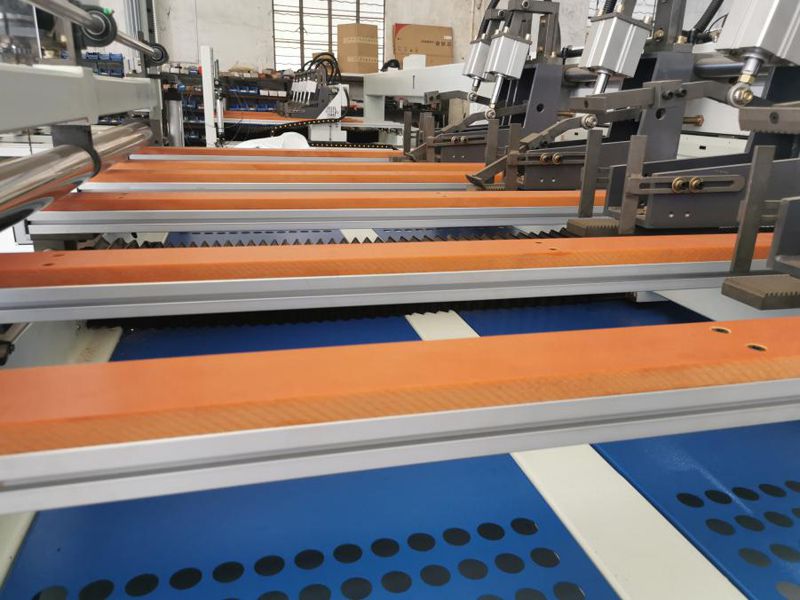

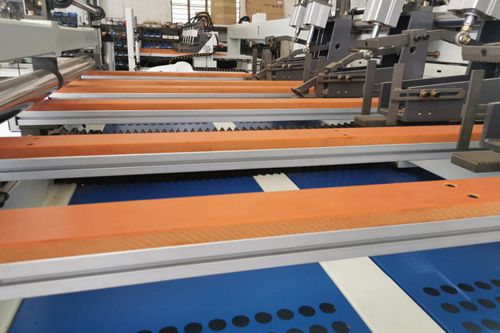

Wood panels are tightly clamped on Bakelite working table to prevent from being scratched.
-
-
German PA system and Schneider electrical parts are used to ensure stable operation, the operating system has function of automatic troubleshooting.
-
-

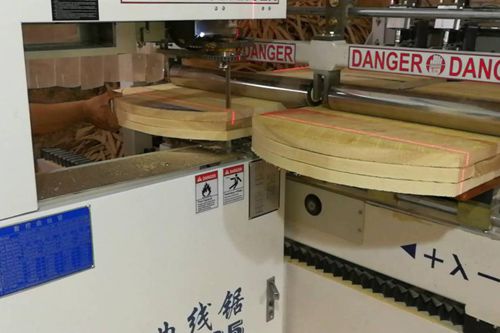

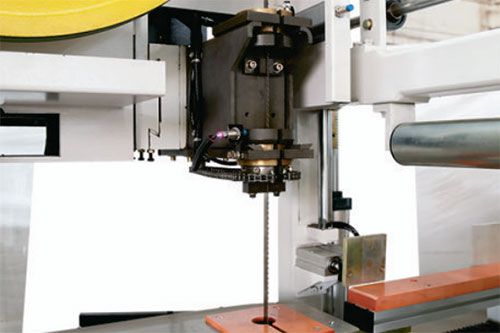

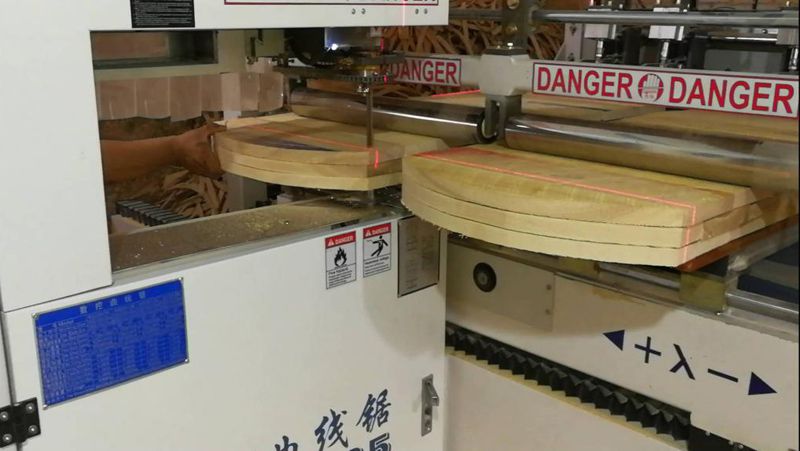

Programmable blade rotation of 90 degree, capable of high automation and high efficiency cutting complex parts with any curves; Designed with functions of automatic feeding, automatic operation, infrared beam for dual-axis positioning, ensuring high accuracy.
-
-

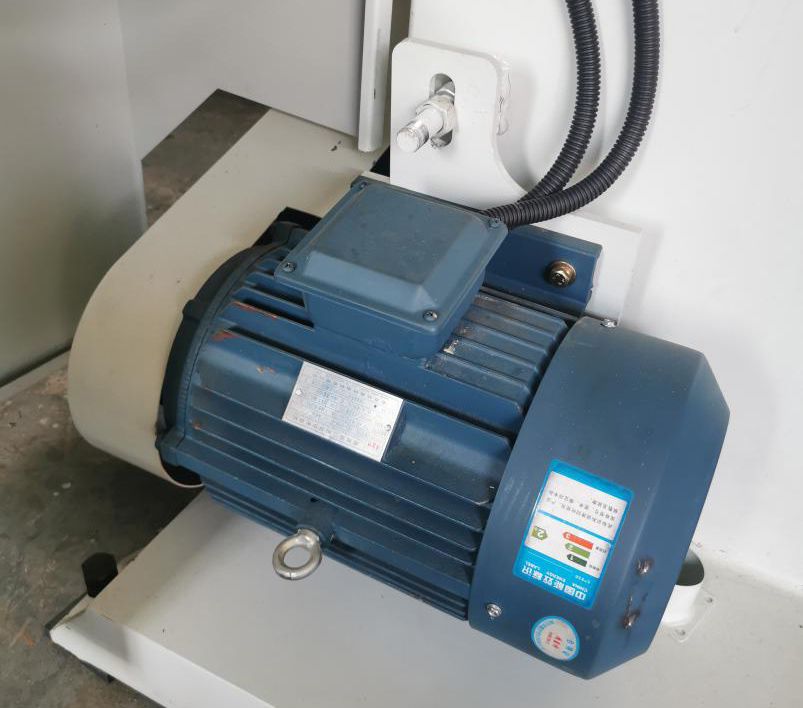

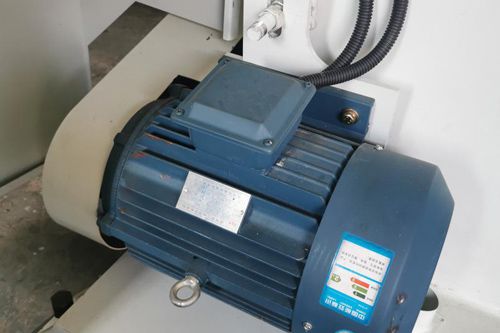

External motor is adopted for quick and easy replacing of belt.
-
-

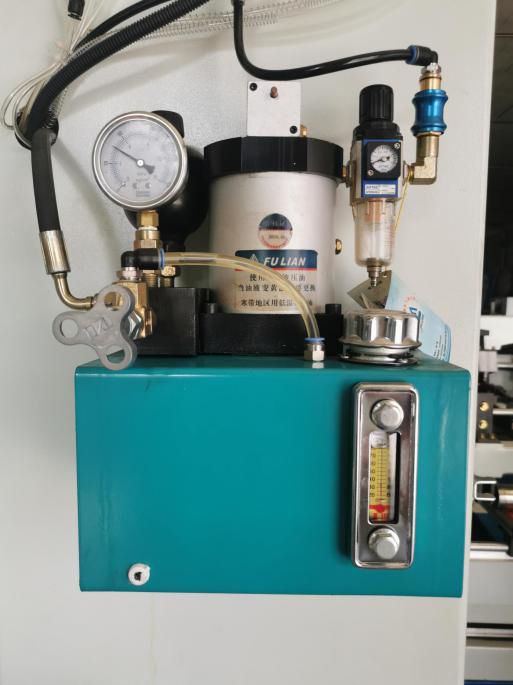

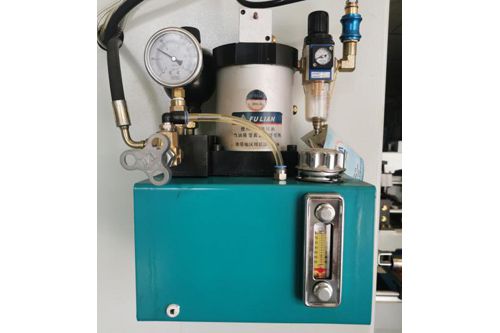

Hydraulic blade tension device is fitted to ensure that operation of saw blade is more reliable and stable.
