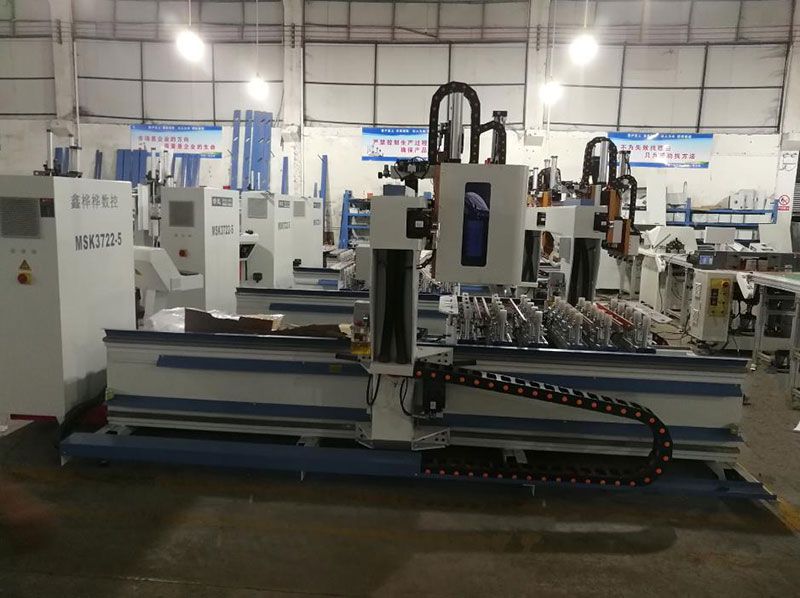

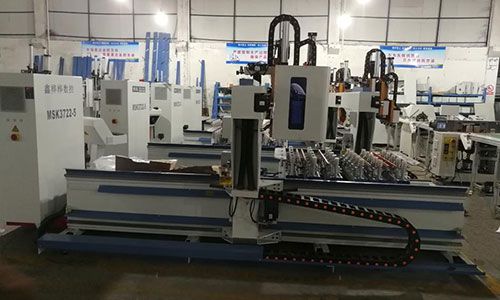

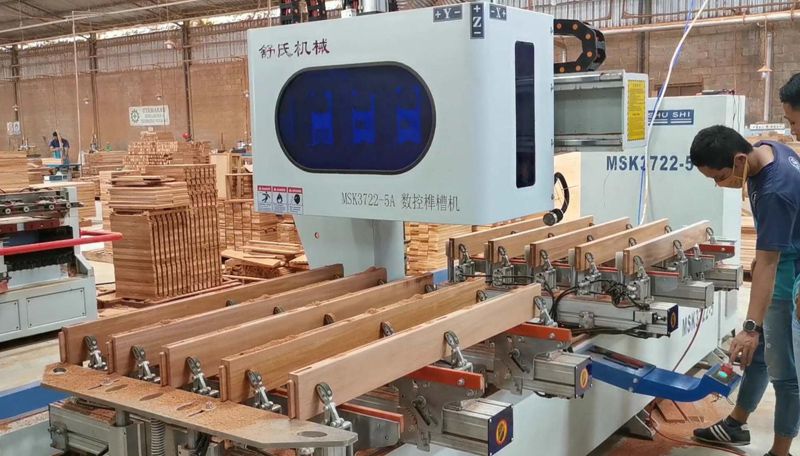

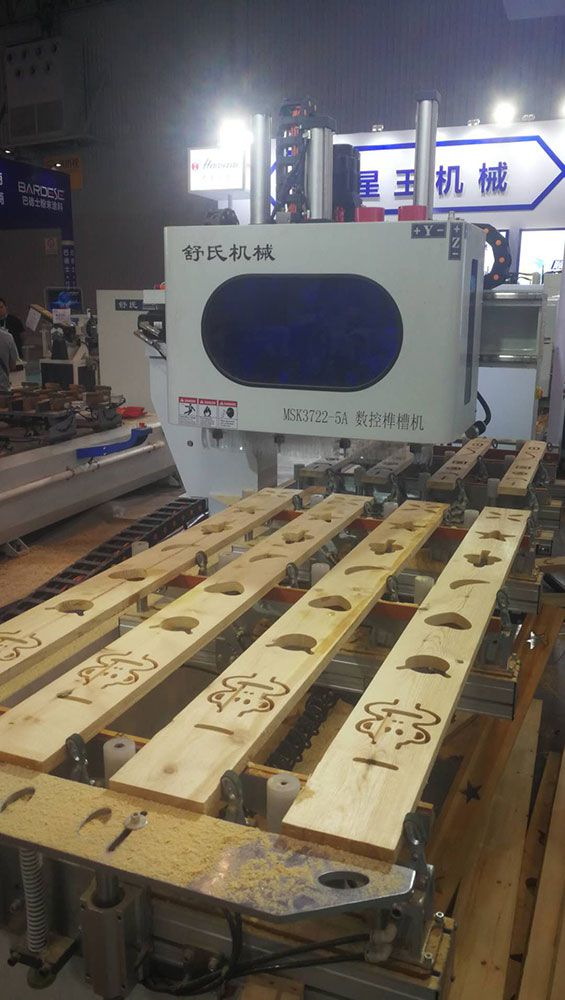

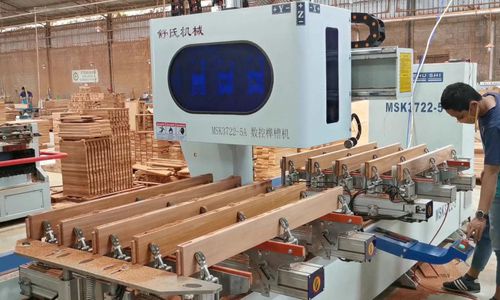

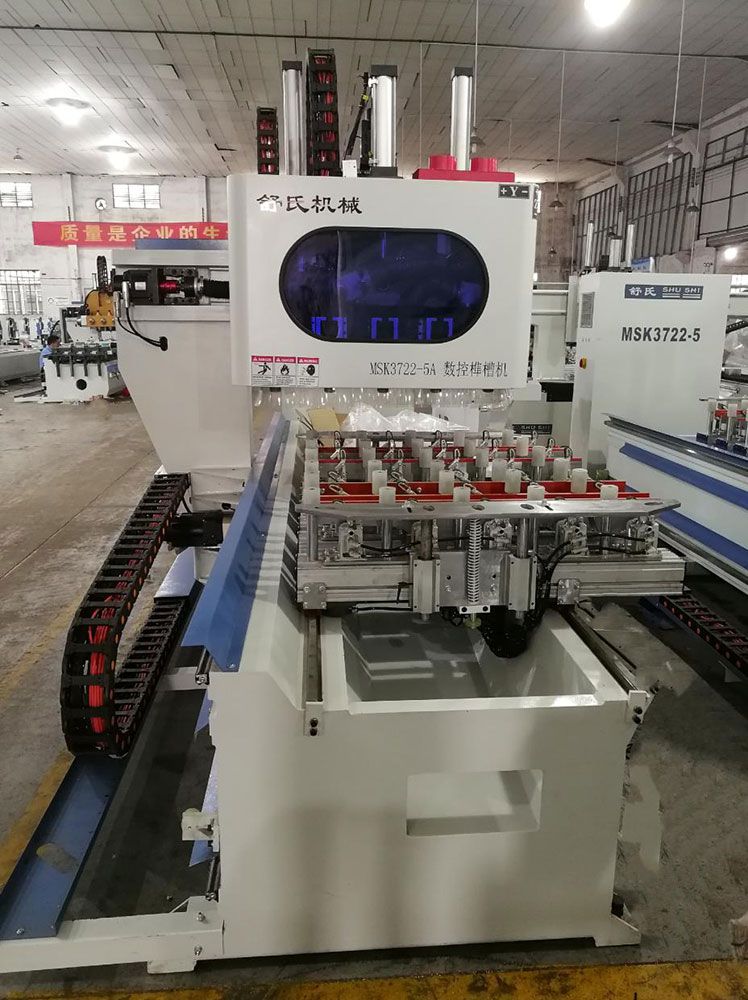

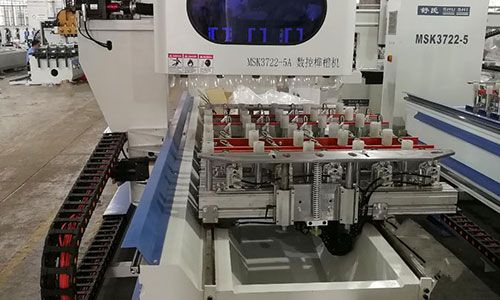

CNC Machining Center for Mortising, MSK3722

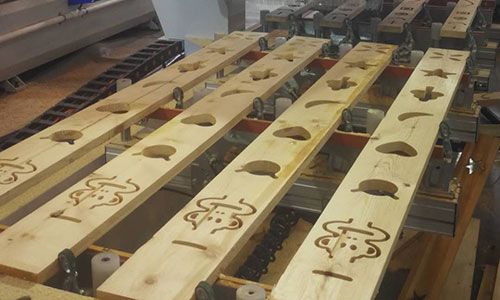

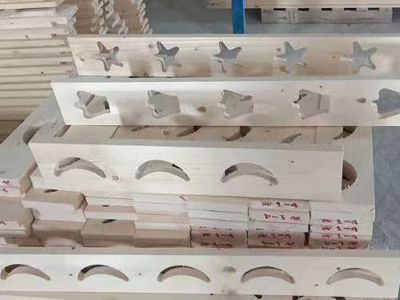

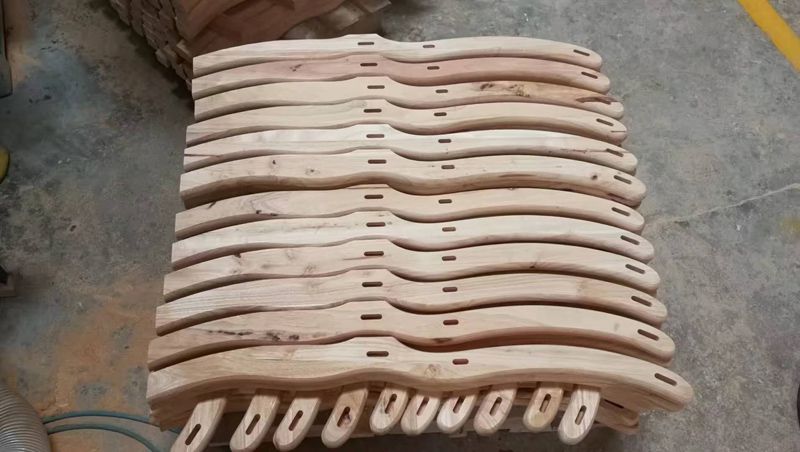

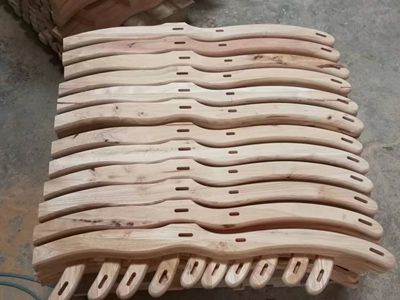

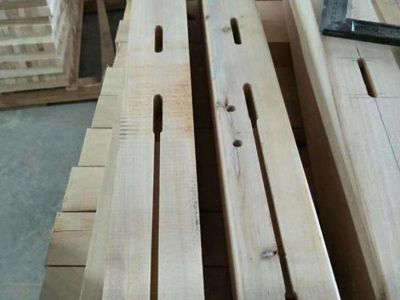

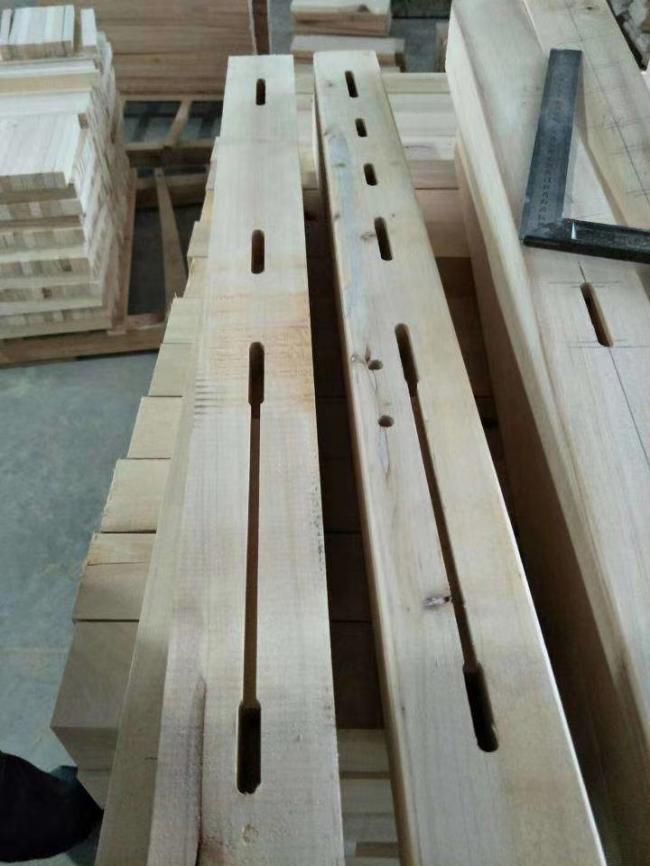

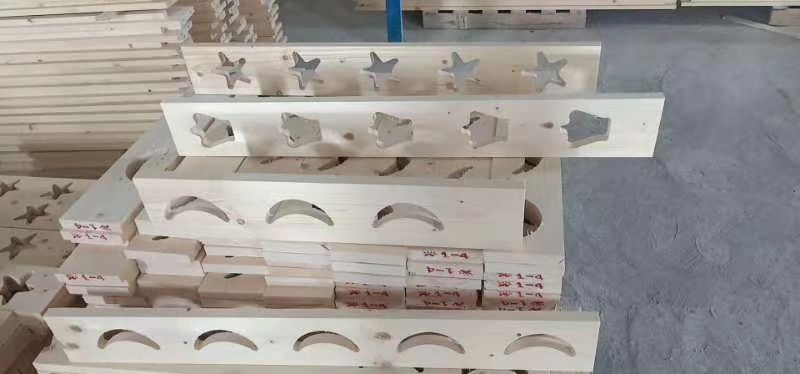

Samples
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
Technical Data
Model MSK3722-5A MSK3722-5A*2 MSK3722-4A MSK3722-4A*2
Max. travel of X-axis 3300mm 3100mm 3300mm 3100mm
Max. travel of Y-axis 430mm 430mm 430mm 430mm
Max. travel of Z-axis 300mm 300mm 300mm 300mm
Max. material width 120mm 120mm 180mm 180mm
Power of X-axis 2.3kw 2.3kw 2.3kw 2.3kw
Power of Y-axis 2.0kw 2.0kw 2.0kw 2.0kw
Power of Z-axis 2.0kw (with brake) 2.0kw (with brake) 2.0kw (with brake) 2.0kw (with brake)
Spindle rotation speed 18000r/min 18000r/min 18000r/min 18000r/min
Spindle power 2.2kw*5 (optional) 3.7kw*5+2.2kw*5 (optional) 2.2kw*4 (optional) 3.7kw*4+2.2kw*4 (optional)
Distance between spindles 200mm 200mm 260mm 260mm
Max. working speed 20m/min 20m/min 20m/min 20m/min
Total power 17.3kw 35.8kw 15.1kw 29.9kw
Weight 2600kg 2800kg 2550kg 2750kg
Dimension 4740*2230*1940mm 4740*2230*1940mm 4740*2230*1940mm 4740*2230*1940mm

MSK3722-5A

  • Max. travel of X-axis: 3300mm
  • Max. travel of Y-axis: 430mm
  • Max. travel of Z-axis: 300mm
  • Max. material width: 120mm
  • Power of X-axis: 2.3kw
  • Power of Y-axis: 2.0kw
  • Power of Z-axis: 2.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*5 (optional)
  • Distance between spindles: 200mm
  • Max. working speed: 20m/min
  • Total power: 17.3kw
  • Weight: 2600kg
  • Dimension: 4740*2230*1940mm

MSK3722-5A*2

  • Max. travel of X-axis: 3100mm
  • Max. travel of Y-axis: 430mm
  • Max. travel of Z-axis: 300mm
  • Max. material width: 120mm
  • Power of X-axis: 2.3kw
  • Power of Y-axis: 2.0kw
  • Power of Z-axis: 2.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 3.7kw*5+2.2kw*5 (optional)
  • Distance between spindles: 200mm
  • Max. working speed: 20m/min
  • Total power: 35.8kw
  • Weight: 2800kg
  • Dimension: 4740*2230*1940mm

MSK3722-4A

  • Max. travel of X-axis: 3300mm
  • Max. travel of Y-axis: 430mm
  • Max. travel of Z-axis: 300mm
  • Max. material width: 180mm
  • Power of X-axis: 2.3kw
  • Power of Y-axis: 2.0kw
  • Power of Z-axis: 2.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*4 (optional)
  • Distance between spindles: 260mm
  • Max. working speed: 20m/min
  • Total power: 15.1kw
  • Weight: 2550kg
  • Dimension: 4740*2230*1940mm

MSK3722-4A*2

  • Max. travel of X-axis: 3100mm
  • Max. travel of Y-axis: 430mm
  • Max. travel of Z-axis: 300mm
  • Max. material width: 180mm
  • Power of X-axis: 2.3kw
  • Power of Y-axis: 2.0kw
  • Power of Z-axis: 2.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 3.7kw*4+2.2kw*4 (optional)
  • Distance between spindles: 260mm
  • Max. working speed: 20m/min
  • Total power: 29.9kw
  • Weight: 2750kg
  • Dimension: 4740*2230*1940mm

This CNC mortise machining center is suitable for processing a wide variety of workpieces with different sizes and shapes, especially to create curved mortise slots, oval mortise slots and other various specially-shaped mortise slots. In addition, this CNC mortiser machine is able to process several types of mortise slots on the same workpiece through one process.

Features
  • Designed with dual work stations for continuous processing, greatly improving production efficiency.
  • Single arm structure makes material loading and unloading easier.
  • Automatic lubrication system circulates lubrication to ensure smooth operation and prolonged service life of moveable parts.

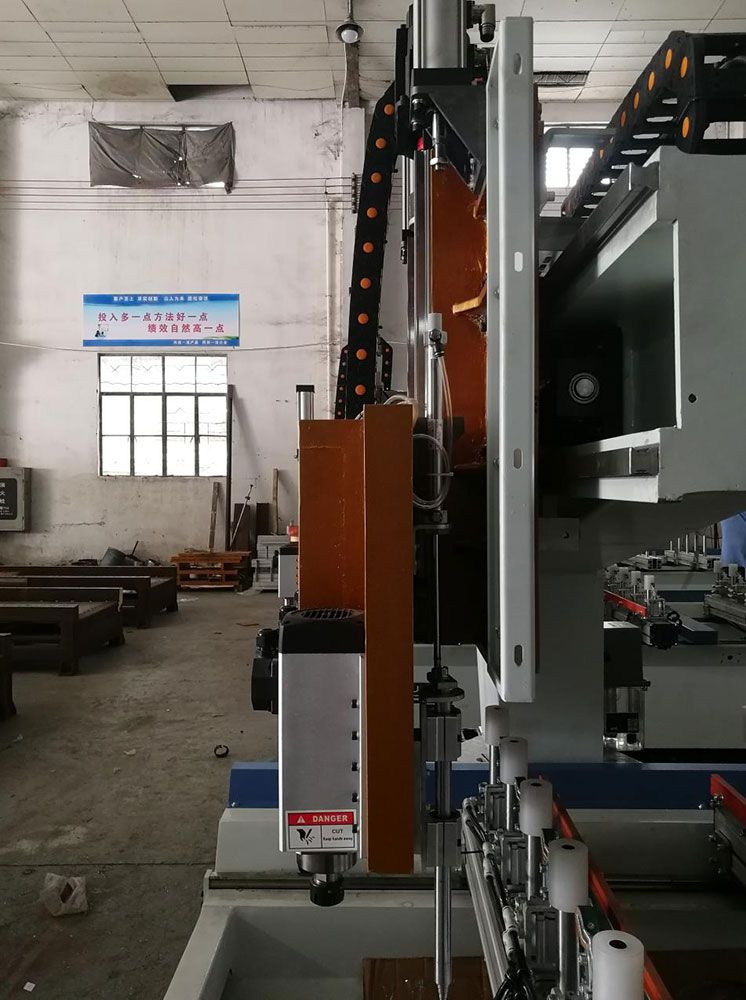

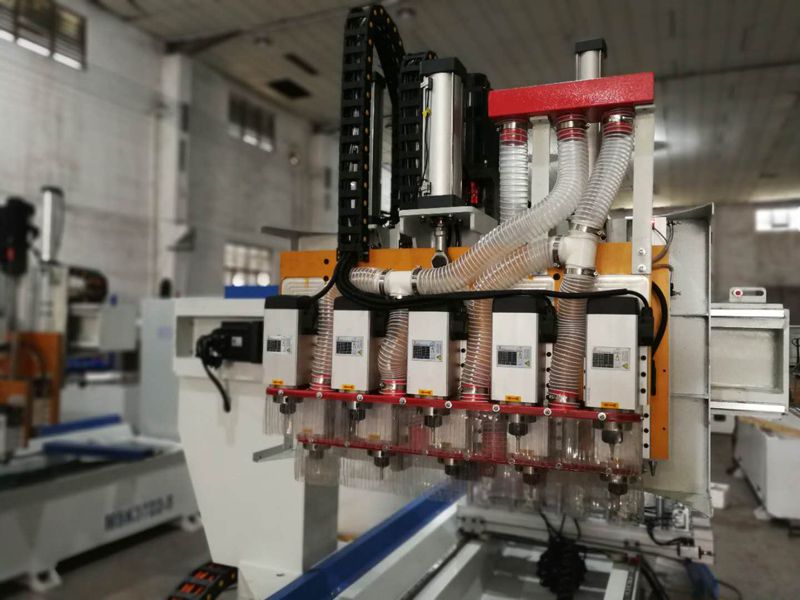

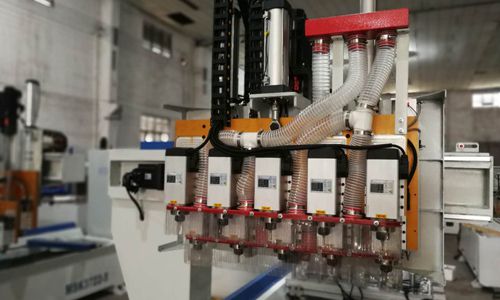

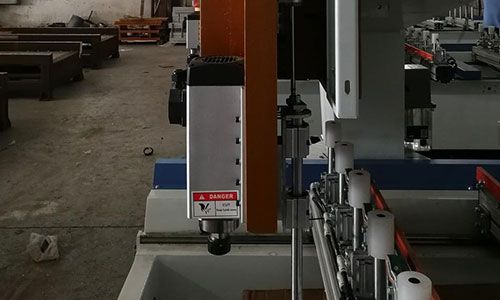

  • High speed spindle is fitted in motor, rotation speed is up to 18000r/min, the rotation speed can be reduced by control system during drilling process.
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
  • CNC Machining Center for Mortising, MSK3722
