Total power | 12.7KW |
Dimension (L*W*H) | 5660*900*1700mm |
Feed speed | 15-23m/min |
Edge thickness | 0.4-3mm |
Panel thickness | 10-60mm |
Panel length | ≥120mm |
Panel width | ≥95mm |
Working pressure | 0.6Mpa |
Min. panel size (L*W) | 120*95mm |
Weight | 2090kg |

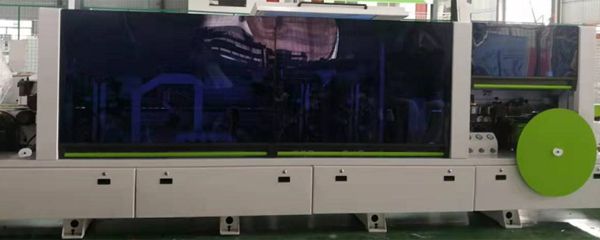

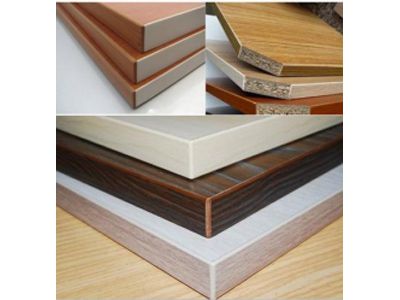

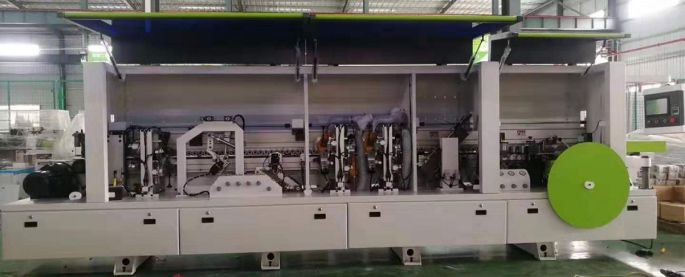

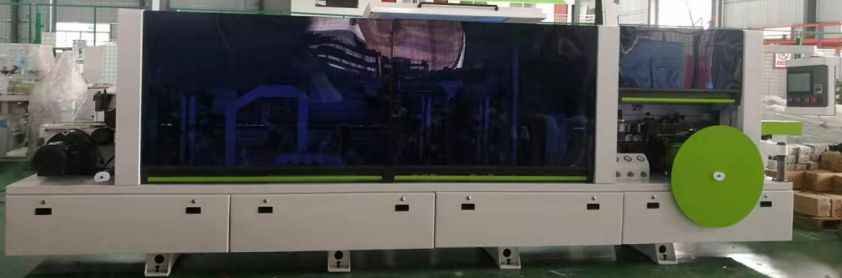

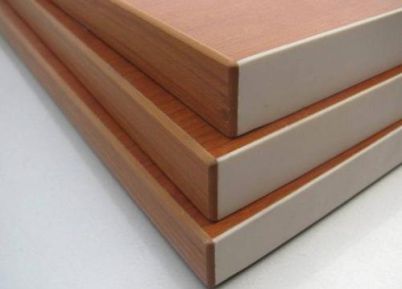

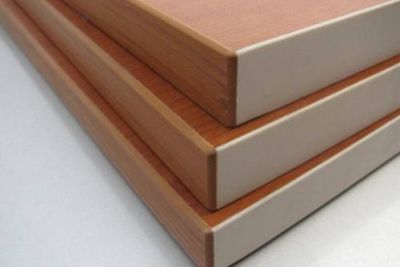

This fully automatic edge banding machine is used to apply straight edging strips to raw edges of various panels such as MDF, blockboard, solid wood board, particle board, polymer door panel, plywood, etc. to create smooth edges. The feed speed reaches 18-22m/min. Through processes of gluing, end cutting, rough trimming, fine trimming, curve tracing, scraping and buffing, this edge bander can meet your basic needs of wood panel edge banding. In addition, independently operated control panel makes machine operation and maintenance easier, and the automatic lubrication system can prolong the service life of the machine.

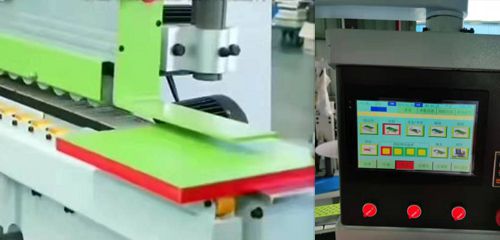

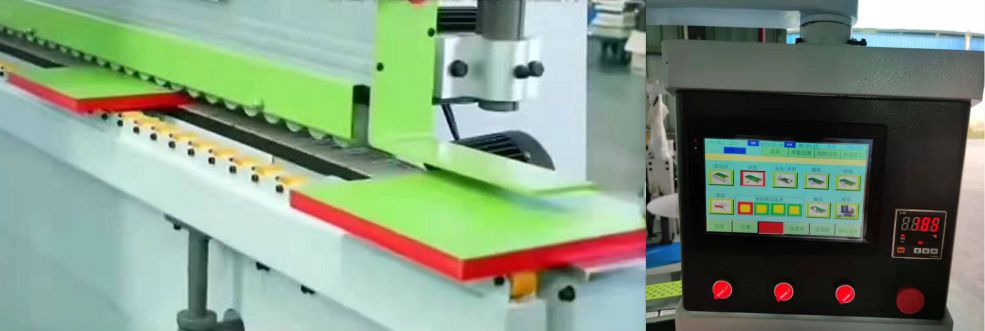

After manually placing the panel on the conveyor belt, this edgebander will automatically complete the entire edge banding process.

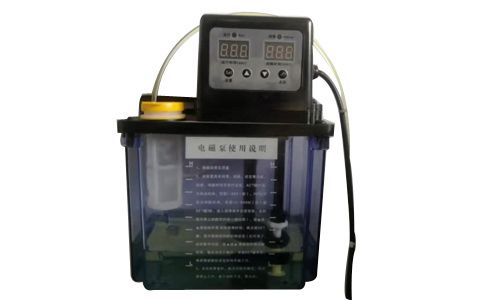

Automatic lubrication system circulates lubrication for smooth operation and prolonged service life of parts.

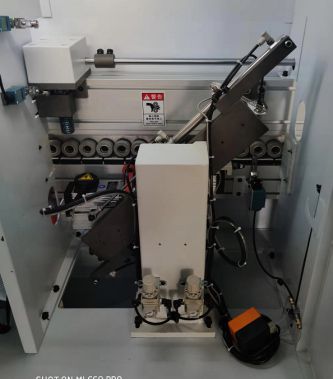

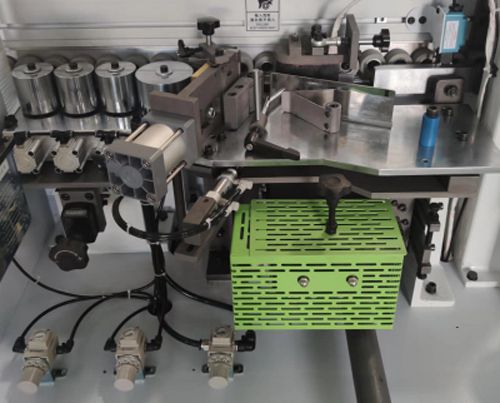

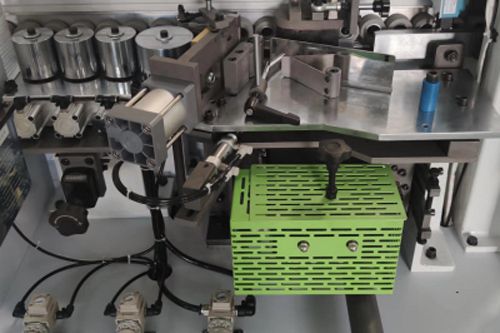

Gluing unit is equipped for evenly applying hot melt glue on workpiece edges, it provides an excellent adhesion.

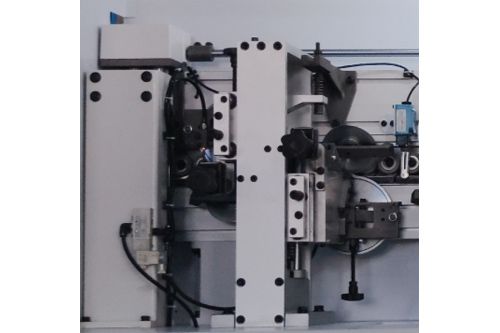

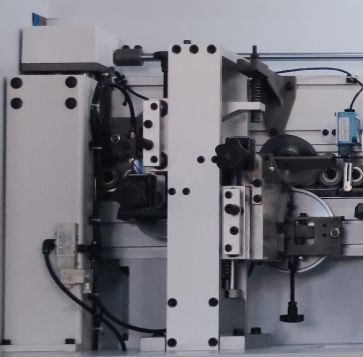

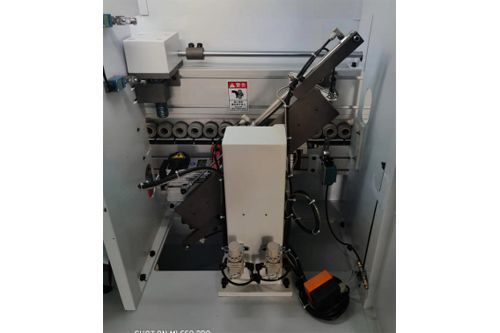

End cutting unit removes exceeding edging tape from the front and rear of the panel.

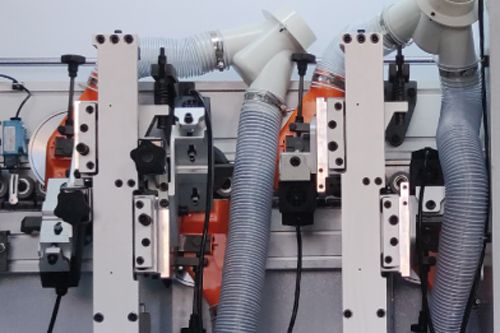

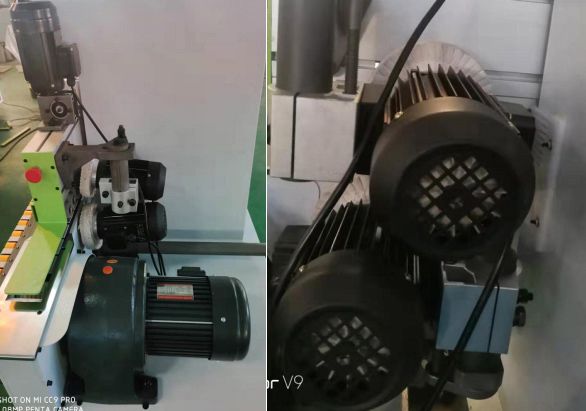

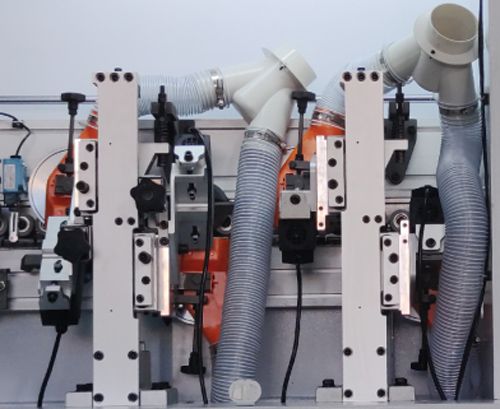

Rough trimming & fine trimming units perfectly remove upper and lower overhanging edges to give a smooth looking edging.

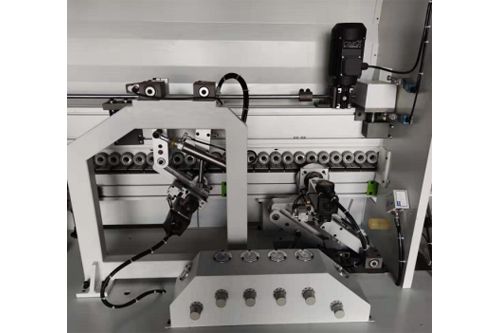

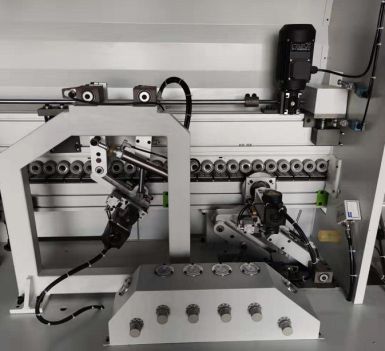

Tracing system guarantees that edging strip moves flexibly along the curved edge of workpiece during conveying process, providing accurate contour-tracing control to ensure optimal finish quality.
Scraper unit gives the smooth finishing result of PVC edges by removal of imperfections resulting from previous milling operations on the top and bottom of the edge.
Buffing unit improves panel finishing by polishing of the panel edges while eliminating glue residues.
