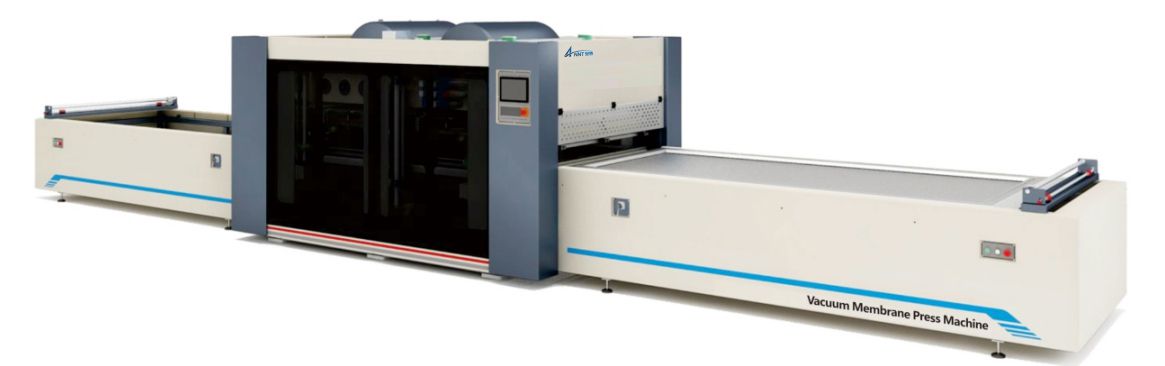

Membrane Presses, M3000-D

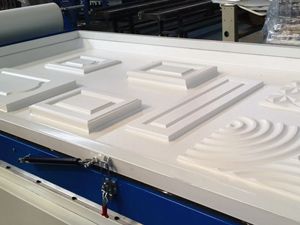

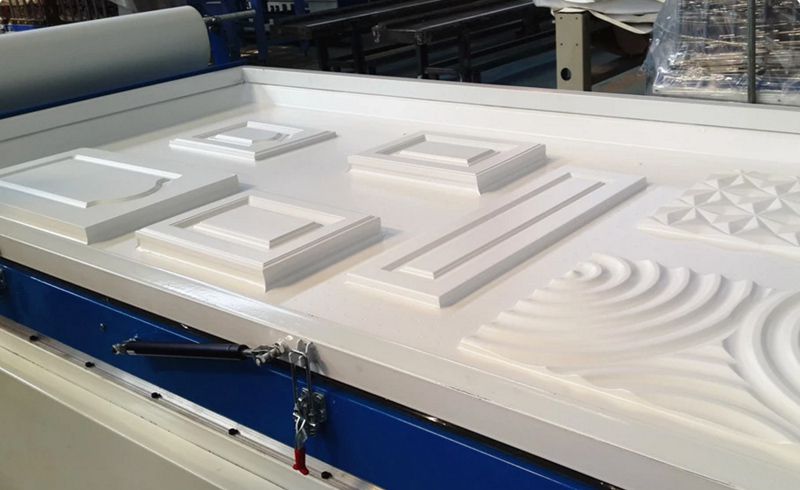

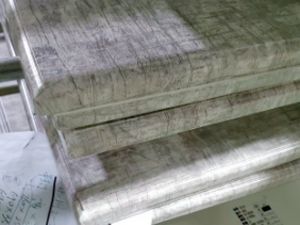

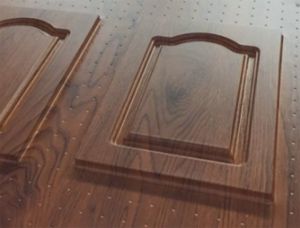

Samples
Technical Data
Model |
M3000-D |
Working length |
2730/3300/3400mm |
Working Width |
1300mm |
Working height |
50mm |

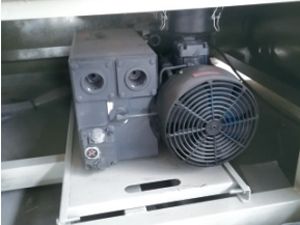

Vacuum pump |
Mute spiral high speed, 200L capacity |
Heating mode |
Electric and oil heating |
Oil cylinder qty & dia. |
6/8 * 150mm |
Working pressure Positive |
0.5Mpa |
Negative pressure: |
0.95Mpa |
Max. temp |
150℃ |
Total power |
36kw |
Overall size |
10150 * 2340* 2450mm |
Weight |
9700kg |
This membrane press is designed for woodworking and furniture production to press coating materials such
as veneer and thermoplastic films onto base panels which are embossed with specific patterns. The membrane vacuum
press is also perfect for pressing veneer onto curved surface of solid wood panel, providing an improved realistic
aesthetic with 3D effect. We can get your membrane press custom manufactured according to your specific requirements.
Features
- Insulation
360 degree fully sealed high density insulation board
Automatic cooling system
- Worktable
Sheet metal fully sealed worktable
Aluminum alloy frame
Pneumatic fixture worktable
- Heating system
Using close proximity type far infrared radiant heating panel
Independent multi-temperature zone heating control
- Driving system
Variable frequency drive worktable
Maintenance-free drive system

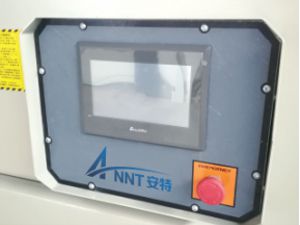

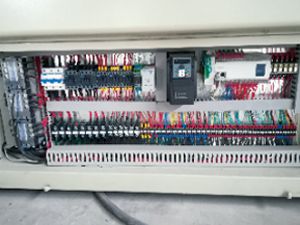

- Operating system
PLC digital control
The fault point prompts
Memory 22 kinds of materials, one button switch
Two worktables, one working and the other one will be standby
Solid state module, PID control, temperature difference control within 1 degree
