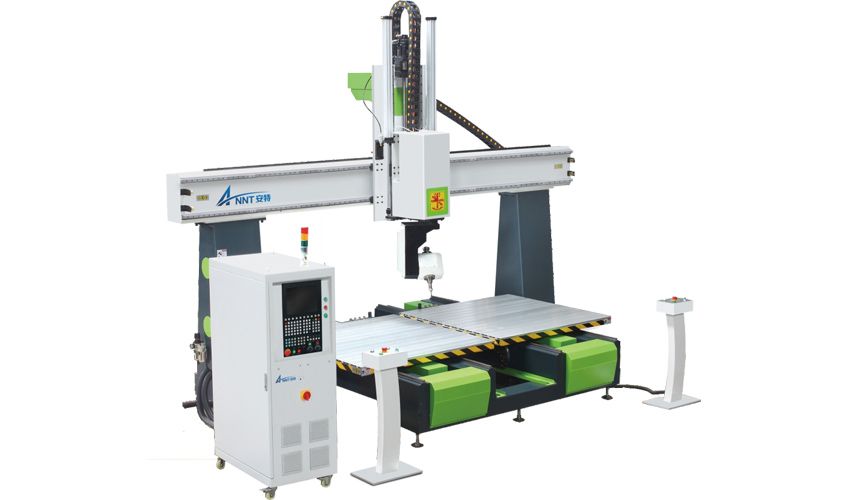

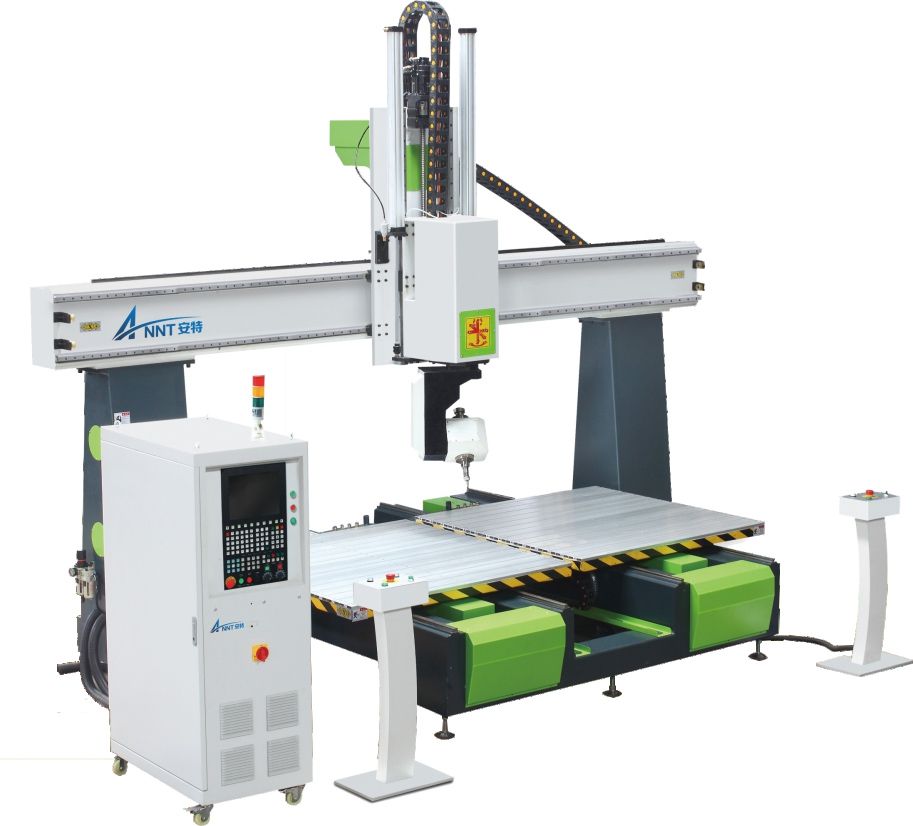

5-Axis CNC Router, SK5Z1414
Technical Data
| Worktable | Aluminum |
| Body structure | Seamless welding with thick steel |
| Pinion & gear | Leadrack Grinding grade |

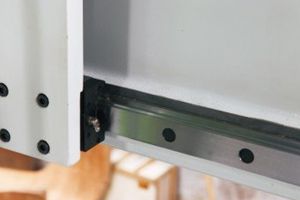

| Guide rail | Taiwan PMI |
| Ball screw | Taiwan TBI |

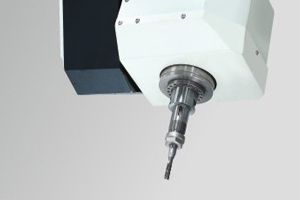

| Spindle | 7.5kw * 2pcs, 18000rpm/min |

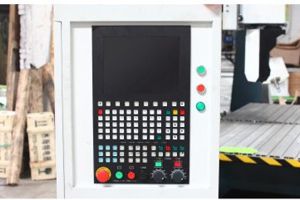

| Control system | 5 axis system (With RTCP) |
| Programming software | Mastercam/UG/Powermill etc. |
| X/Z axis transmission | Yaskawa 1.5kw servo motor + ball screw Yaskawa |
| Y axis transmission | 1.0kw servo motor + ball screw Yaskawa 0.75kw |
| B/C axis transmission | servo motor + RV speed reducer Airtec |
| Tool magazine | 8/12/16/20 optional |
| Tool holder | ER32 |
| Inverter | 7.5kw |
| Worktable attachment | 4 sets N-150 sucker |
| Single worktable size | 1400*1400mm |
| Gantry height | 900mm |
| Working area | 2500*1400*800mm |
| Rapid speed | 40m/min |
| Processing speed | 20m/min |
| Turning speed | 15m/mm |
| Processing precision | ±0.02mm |
| Air pressure | 0.6mpa |
| Overall size | 4500*2600*4000mm |
| Weight | 4000kg |

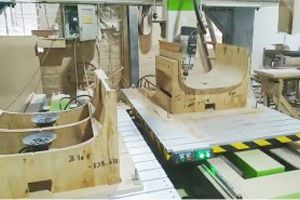

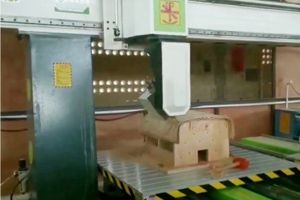

Our 5-axis CNC router is a CNC machining center configured with 9kw air-cooled variable frequency drive and 24000rpm high quality spindle (Italian brand HSD is available). The self-calibration system for 5 axes can ensure improved processing accuracy and productivity, solving your application needs for machining of complex curves. The uniquely developed torque system allows the rotating axis to be stable in vertical position, thus increasing system durability. This CNC router is widely used for processing workpieces with curved shapes in various industries such as furniture, door panel and bathroom products.
Since 2003, ANNT has been providing woodworking machines to meet our customer's wood and lumber processing needs. The company has always had a strong commitment to the woodworking manufacturing industry. We know that all furniture manufacturers, wood fabricators or any wood and lumber processing companies want to make use of leading woodworking tools, we continuously strive to manufacture the high quality wood processing machinery, helping our customers stay ahead in their competitive market. Every woodworking machine such as edge banding machine or table saw we provide is custom manufactured precisely to meet customer’s needs. When you are looking for a wood processing machine that allows you to manufacture high accuracy products, our CNC machining centers can provide you with exactly what you require in an efficient manner. Please feel free to contact us to discuss your requirements of panel saw or edge bander and we'll be delighted to offer our premium quality woodworking machines.
