Straight Line Rip Saw
Technical Data
Model |
MJ164B |
MJ153 |
Saw blade diameter |
φ475mm(19") |
φ305mm(12") |
Max. cutting thickness |
120mm |
80mm |
Max. cutting width |
650mm |
450mm |
Spindle speed |
3000rpm/min |
3000rpm/min |
Saw blade size |
305×4.0×3.0×25.4mm |
305×4.0×3.0×25.4mm |
Spindle diameter |
φ50.8mm |
/ |
Feed speed |
11-26m/min |
12-22m/min |
Feed motor power |
2.2kw |
0.75kw |
Main motor power |
15kw |
7.5kw |
Total power |
17.45kw |
8.25kw |
Table size |
2000×1180mm |
1500×900mm |
Overall dimension |
2250×1800×1550mm |
1800×1050×1500mm |
Machine weight |
2000kg |
850kg |

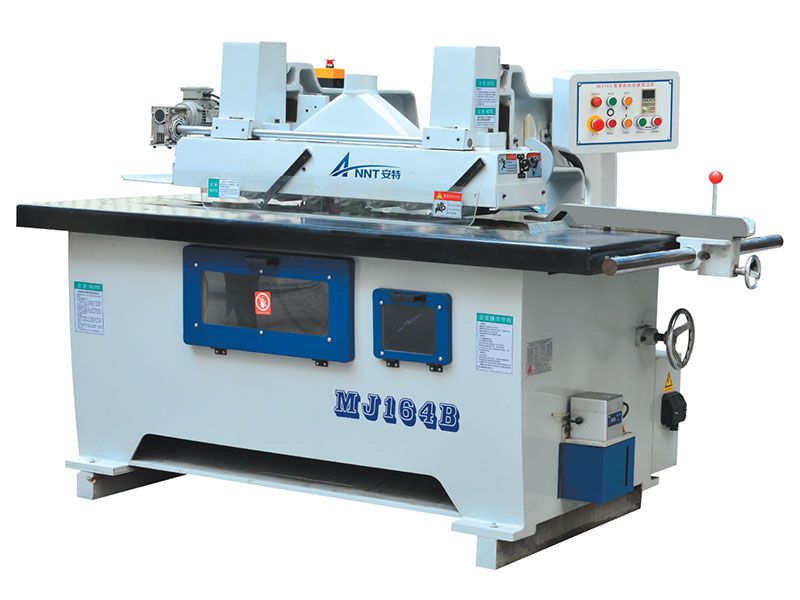

- Saw blade diameter: φ475mm (19”)
- Max. Cutting thickness: 120mm
- Max. Cutting width: 650mm
- Spindle speed: 3000rpm/min
- Saw blade size: 305×4.0×3.0×25.4mm
- Spindle diameter: φ50.8mm
- Feed speed: 11-26m/min
- Feed motor power: 2.2kw
- Main motor power: 15kw
- Total power: 17.45kw
- Table size: 2000×1180mm
- Overall dimension: 2250×1800×1550mm
- Machine weight: 2000kg

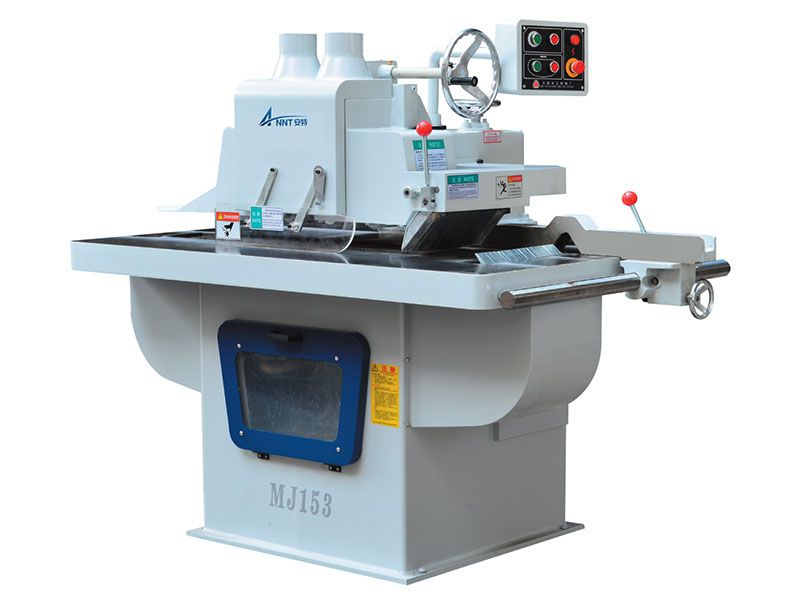

- Saw blade diameter:φ305mm(12")
- Max. Cutting thickness: 80mm
- Max. Cutting width: 450mm
- Spindle speed: 3000rpm/min
- Saw blade size: 305×4.0×3.0×25.4mm
- Spindle diameter: φ50.8mm
- Feed speed: 12-22m/min
- Feed motor power: 0.75kw
- Main motor power: 7.5kw
- Total power: 8.25kw
- Table size: 1500×900mm
- Overall dimension: 1800×1050×1500mm
- Machine weight: 850kg
Features
- Automatic chain track feeding, with anti-kickback protection, ensuring operation safety;
- Adjustable feeding speed, suitable for processing various types of wood;
- Automatic lubrication system, guaranteeing long service life of the machine;
