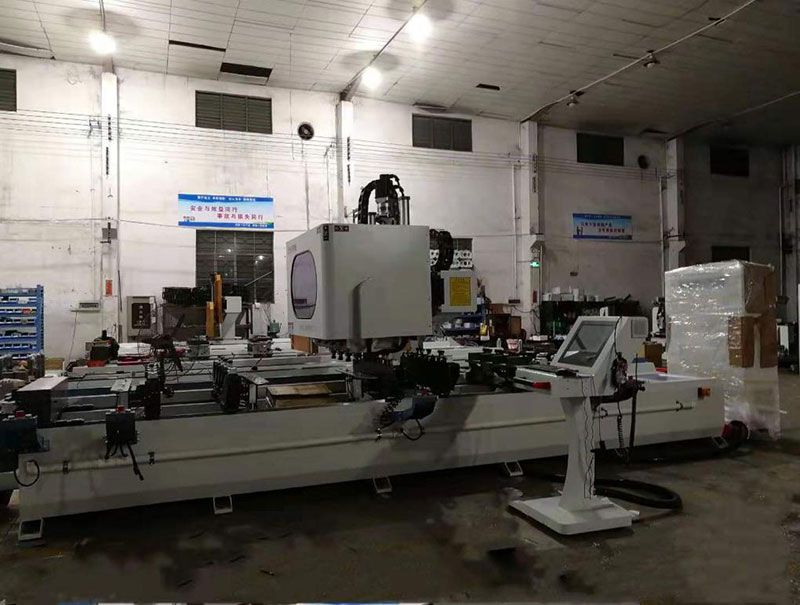

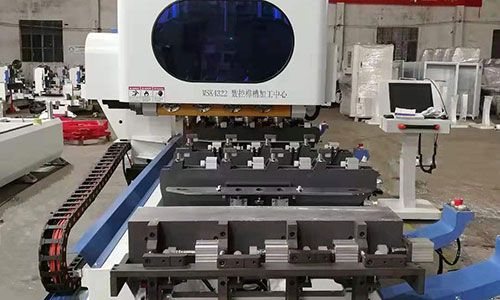

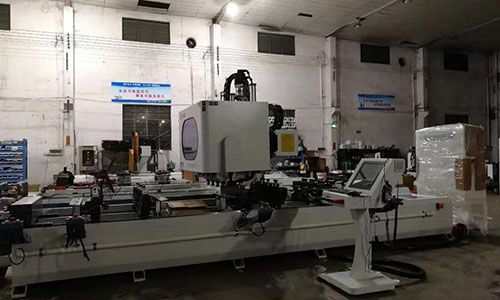

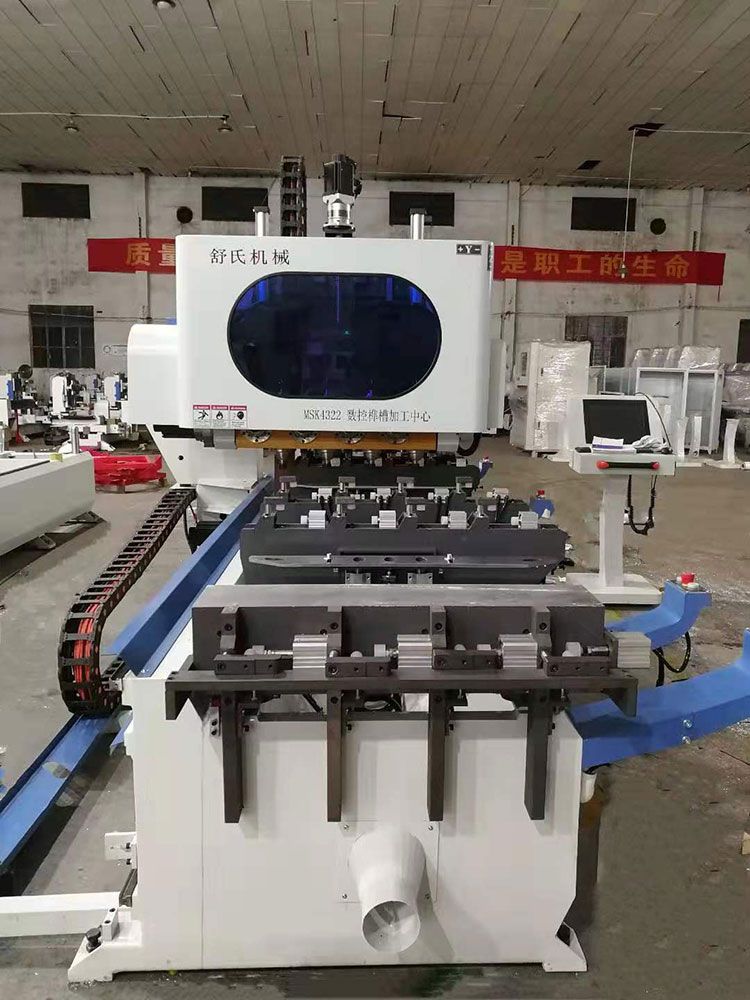

CNC Machining Center for Tenon and Mortise, MSK4322
CNC Machining Center for Tenon and Mortise, MSK4322

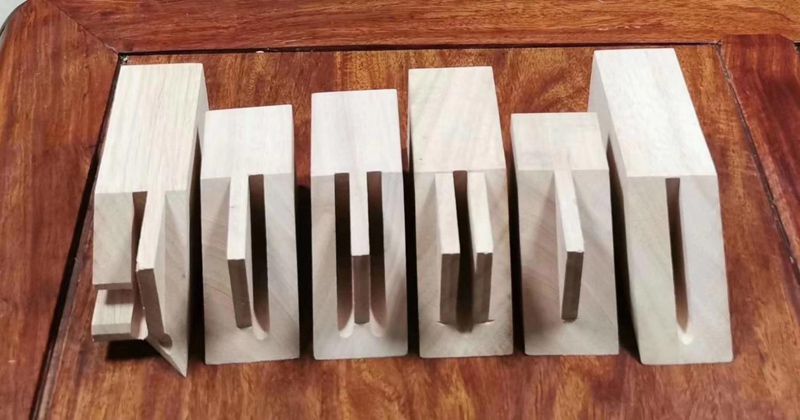

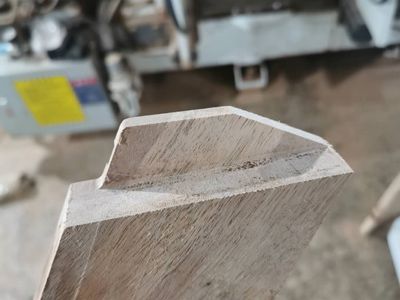

Samples
Technical Data
Max. machining length
4000mm
Servo motor power of X-axis
2.3KW
Servo motor power of Y-axis
1.5KW
Servo motor power of Z-axis (with brake)
2.0KW
Servo motor power of B-axis (with brake)
1.5KW
Spindle rotation speed
18000r/min
Spindle power
5.5kw*4+3.0kw*4
Distance between spindles
220mm
Dimension
5800*1900*2400mm
Weight
4300kg
This CNC machining center is able to perform 360-degree machining of workpieces, it can create curved
mortise slots, oval mortise slots, specially-shaped mortise slots, as well as various tenons. The CNC tenoner and
mortiser machine is an ideal woodworking machine used in redwood mahogany furniture manufacturing industry.
Features
Industrial PC is equipped to accomplish CAD drawing and programming, can meet various needs for machining mortises and tenons with various types and sizes.

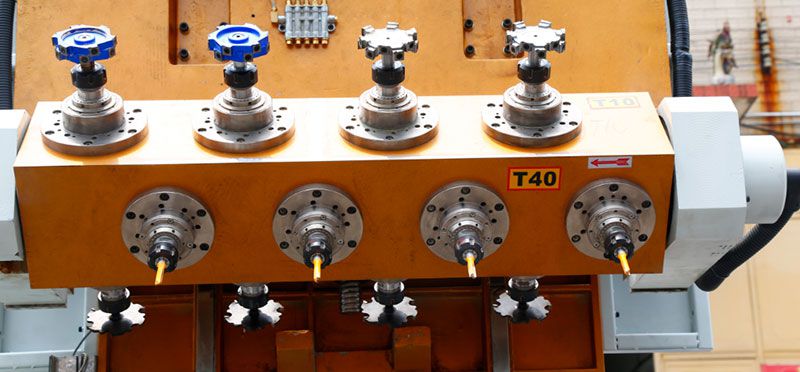

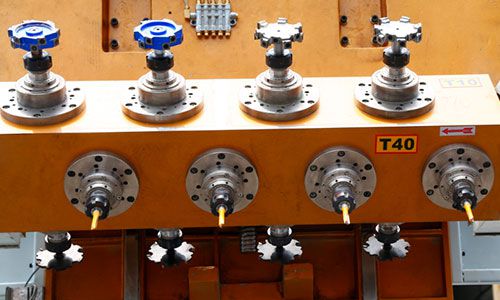

It is possible to equip with 4 rows of different cutting tools, each row of tools can be rotated in 360 degree for processing workpiece in any angle, thus significantly guaranteeing high work efficiency.

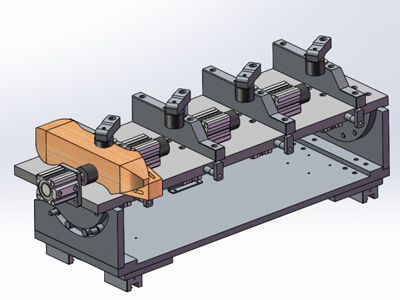

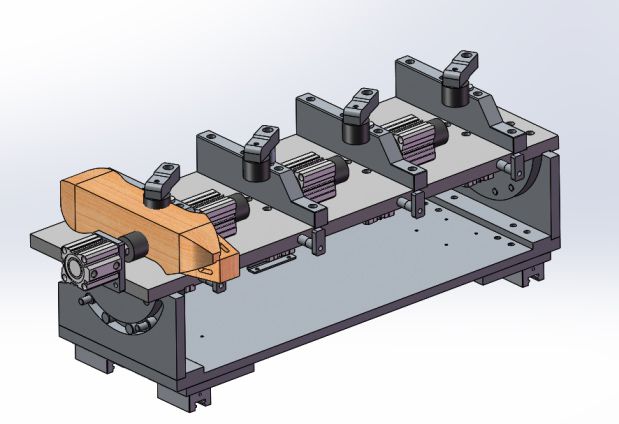

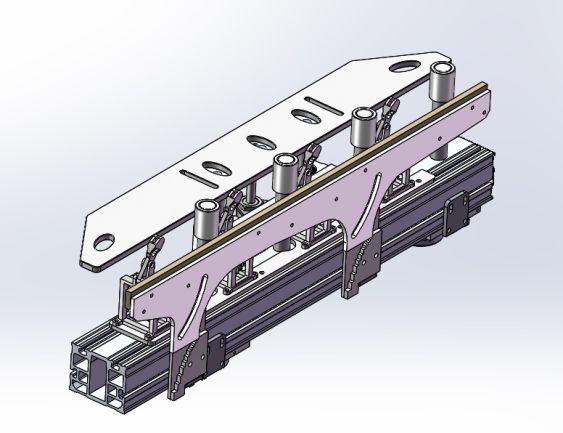

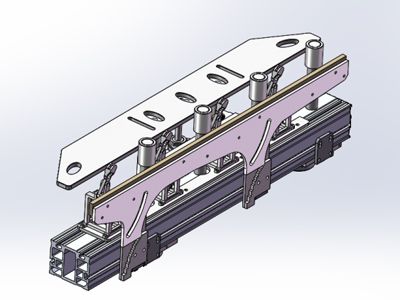

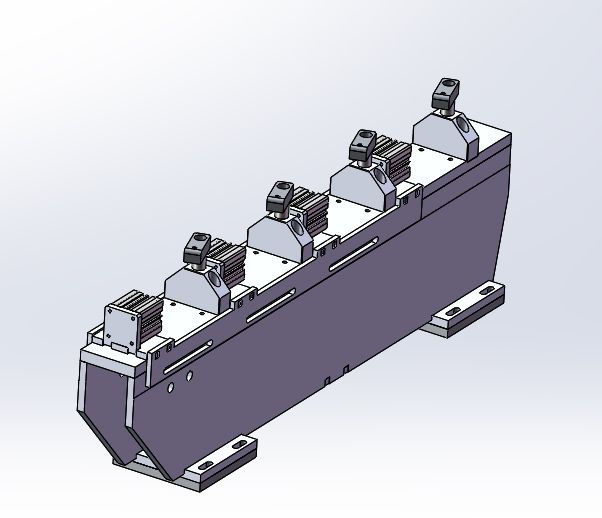

Multitude clamps are used for optimal part control.
Automatic lubrication system circulates lubrication to ensure smooth operation and prolonged service life of moveable parts.
Since 2003, ANNT has been providing woodworking machines to meet our customer's wood and lumber processing needs. The company has always had a strong commitment to the woodworking manufacturing industry. We know that all furniture manufacturers, wood fabricators or any wood and lumber processing companies want to make use of leading woodworking tools, we continuously strive to manufacture the high quality wood processing machinery, helping our customers stay ahead in their competitive market. Every woodworking machine such as edge banding machine or table saw we provide is custom manufactured precisely to meet customer’s needs. When you are looking for a wood processing machine that allows you to manufacture high accuracy products, our CNC machining centers can provide you with exactly what you require in an efficient manner. Please feel free to contact us to discuss your requirements of panel saw or edge bander and we'll be delighted to offer our premium quality woodworking machines.

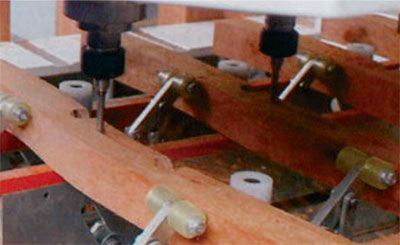

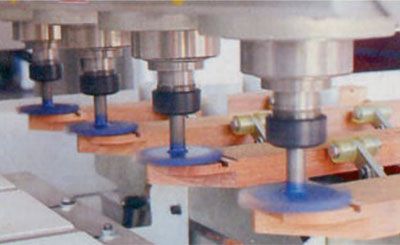

Precise cutting of surface grooves and curves
Precise face milling

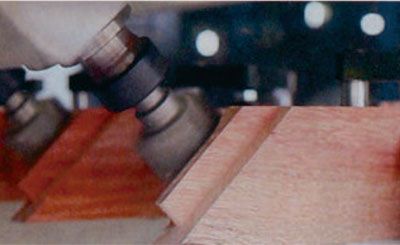

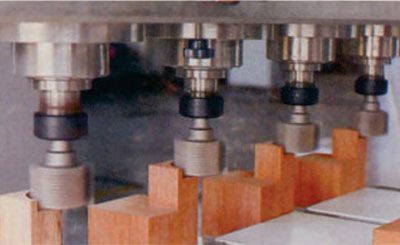

Precise machining with spiral milling cutter

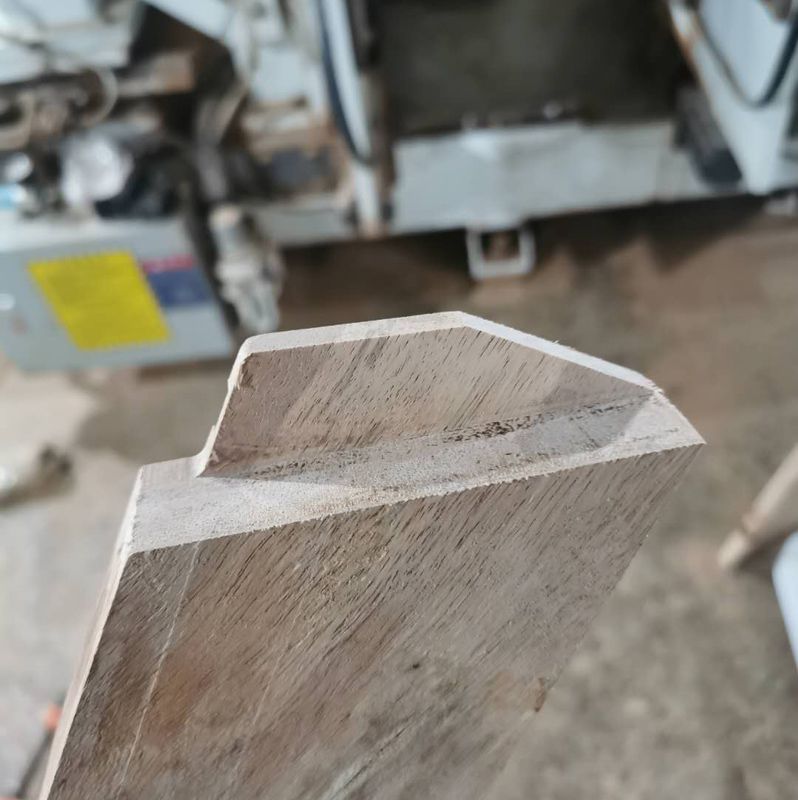

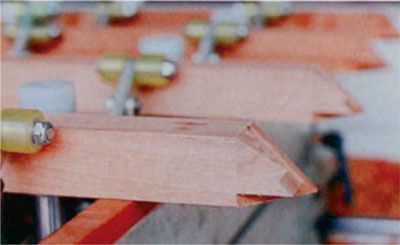

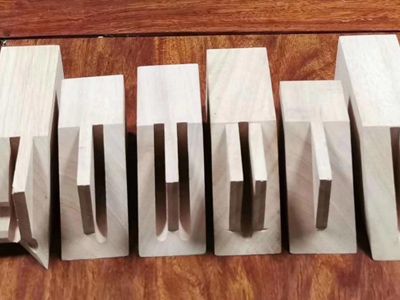

Oblique tenon processing

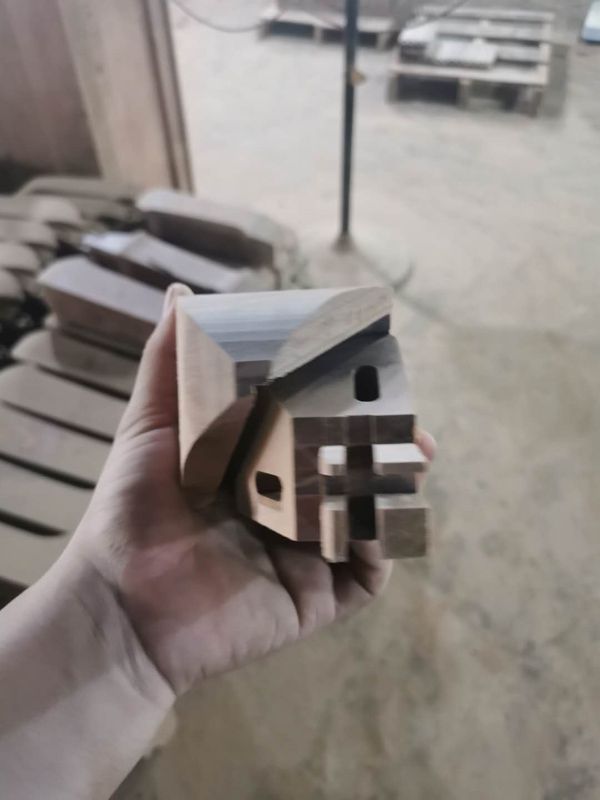

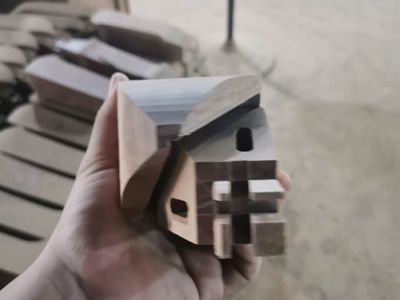

Three way miter joint (Kane Tsugi) processing
