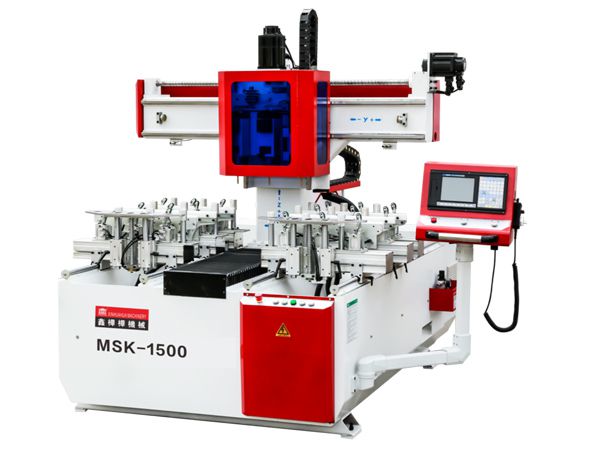

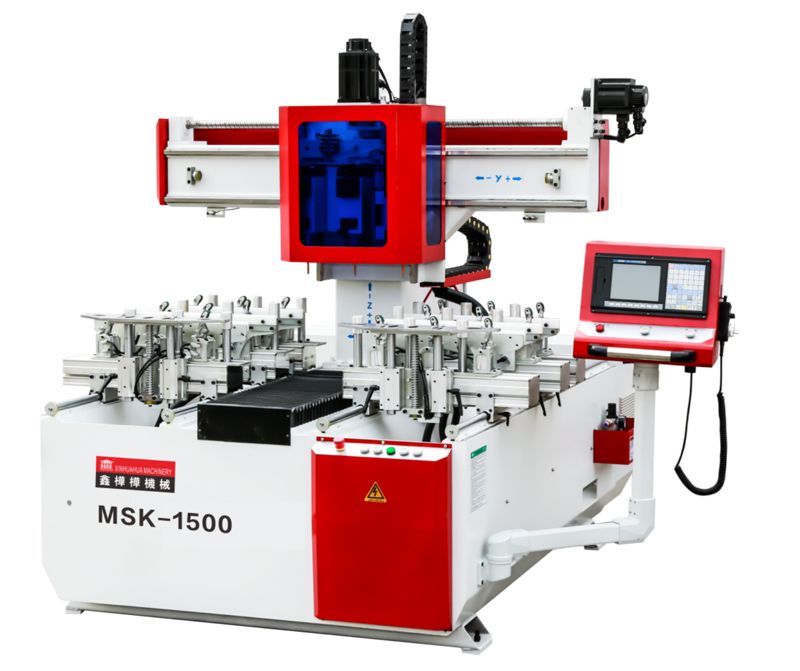

CNC Mortiser, MSK1500

CNC Mortiser, MSK1500

CNC Machining Center for Mortising

This CNC mortiser machine is capable of machining a wide variety of workpieces with different sizes and shapes, especially to create curved mortise slots, oval mortise slots and other various specially-shaped mortise slots. In addition, this CNC mortising machine also can process several types of mortise slots on the same workpiece through one process.

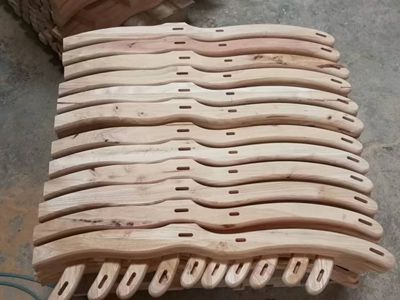

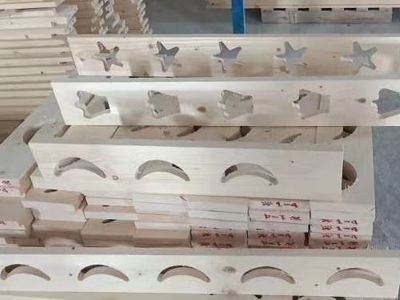

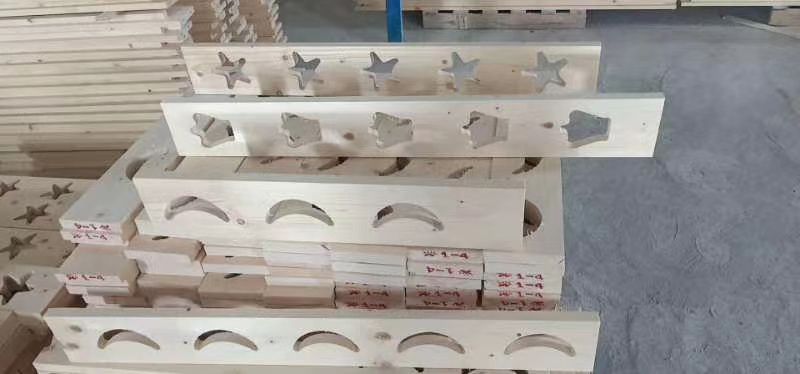

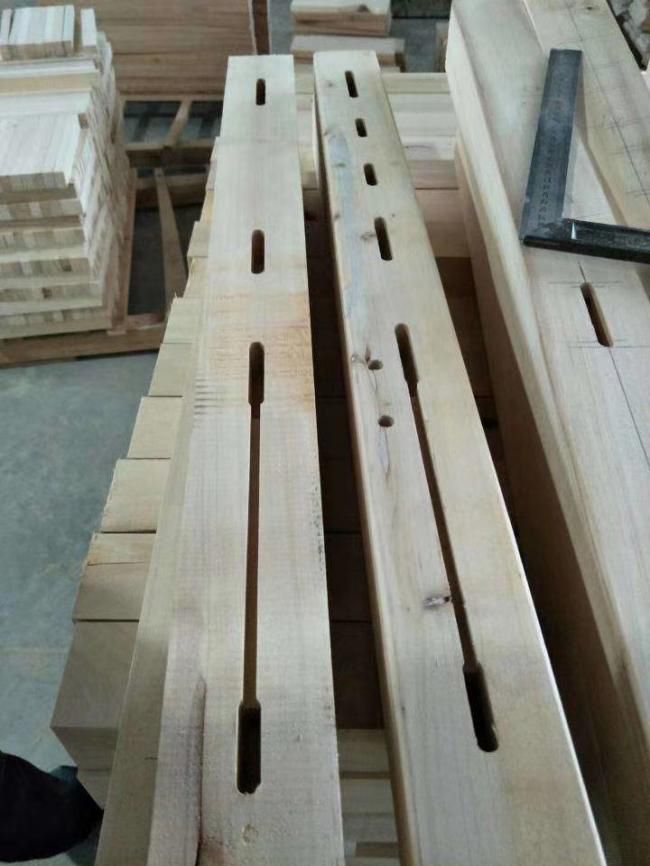

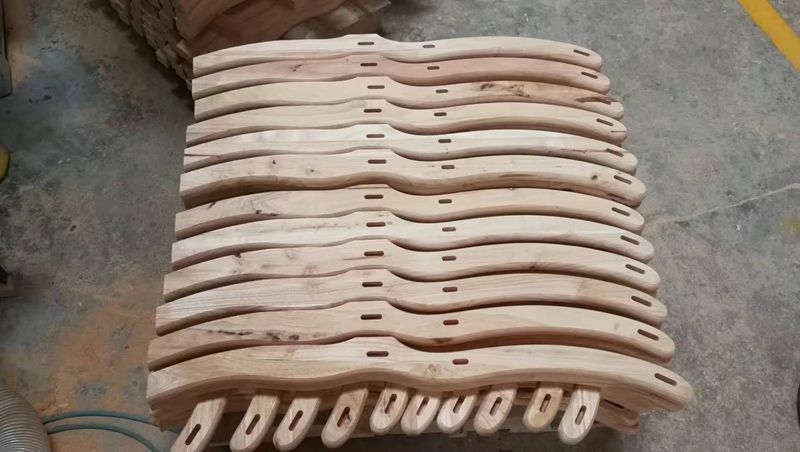

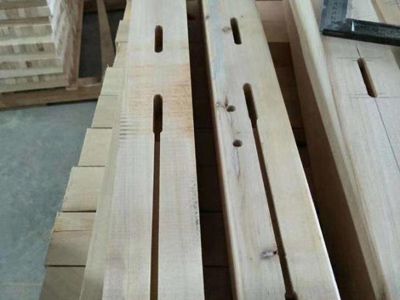

Samples
  • CNC Mortiser, MSK1500
  • CNC Mortiser, MSK1500
  • CNC Mortiser, MSK1500
Technical Data
Model MSK1500-3A MSK1500-3A*2 MSK1500-4A MSK1500-4A*2
Max. travel of X-axis 1500mm 1400mm 1500mm 1400mm
Max. travel of Y-axis 1400mm 1400mm 1400mm 1400mm
Max. travel of Z-axis 200mm 200mm 200mm 200mm
Max. return speed 20m/min 20m/min 20m/min 20m/min
Distance between spindles 195mm 195mm 185mm 185mm
Max. material width 120mm 120mm 110mm 110mm
Power of X-axis 1.5kw 1.5kw 1.5kw 1.5kw
Power of Y-axis 1.0kw 1.0kw 1.0kw 1.0kw
Power of Z-axis 1.0kw (with brake) 1.0kw (with brake) 1.0kw (with brake) 1.0kw (with brake)
Spindle rotation speed 18000r/min 18000r/min 18000r/min 18000r/min
Spindle power 2.2kw*3 2.2kw*3+3.7kw*3 2.2kw*4 2.2kw*4+3.7kw*4
Weight 1500kg 1600kg 1650kg 1750kg
Total power 11kw 22kw 12.5kw 27.5kw
Dimension 3050*1970*2100mm 3050*1970*2100mm 3050*1970*2100mm 3050*1970*2100mm

MSK1500-3A

  • Max. Travel of X-axis: 1500mm
  • Max. Travel of Y-axis: 1400mm
  • Max. Travel of Z-axis: 200mm
  • Max. Return speed: 20m/min
  • Distance between spindles: 195mm
  • Max. Material width: 120mm
  • Power of X-axis: 1.5kw
  • Power of Y-axis:1.0kw
  • Power of Z-axis: 1.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*3
  • Weight: 1500kg
  • Total power: 11kw
  • Dimension: 3050*1970*2100mm

MSK1500-3A*2

  • Max. Travel of X-axis: 1400mm
  • Max. Travel of Y-axis : 1400mm
  • Max. Travel of Z-axis: 200mm
  • Max. Return speed: 20m/min
  • Distance between spindles: 195mm
  • Max. Material width: 120mm
  • Power of X-axis: 1.5kw
  • Power of Y-axis: 1.0kw
  • Power of Z-axis: 1.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*3+3.7kw*3
  • Weight: 1600kg
  • Total power: 22kw
  • Dimension: 3050*1970*2100mm

MSK1500-4A

  • Max. Travel of X-axis: 1500mm
  • Max. Travel of Y-axis: 1400mm
  • Max. Travel of Z-axis: 200mm
  • Max. Return speed: 20m/min
  • Distance between spindles: 185mm
  • Max. Material width: 110mm
  • Power of X-axis: 1.5kw
  • Power of Y-axis: 1.0kw
  • Power of Z-axis: 1.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*4
  • Weight: 1650kg
  • Total power: 12.5kw
  • Dimension: 3050*1970*2100mm

MSK1500-4A*2

  • Max. travel of X-axis: 1400mm
  • Max. travel of Y-axis: 1400mm
  • Max. travel of Z-axis: 200mm
  • Max. return speed: 20m/min
  • Distance between spindles: 185mm
  • Max. material width: 110mm
  • Power of X-axis: 1.5kw
  • Power of Y-axis: 1.0kw
  • Power of Z-axis: 1.0kw (with brake)
  • Spindle rotation speed: 18000r/min
  • Spindle power: 2.2kw*4+3.7kw*4
  • Weight: 1750kg
  • Total power: 27.5kw
  • Dimension: 3050*1970*2100mm

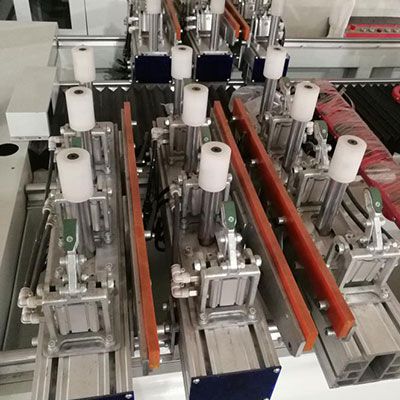

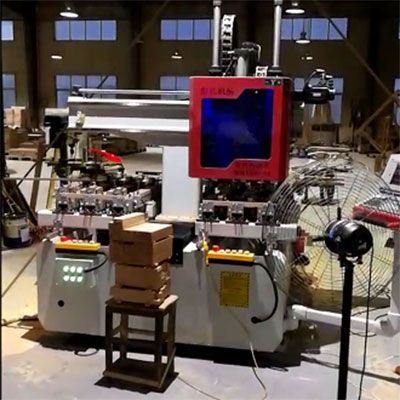

Features
  • Designed with dual work stations for continuous processing, greatly improving production efficiency.
  • T-shaped structure makes material loading and unloading easier.
  • High speed spindle is fitted in motor, rotation speed is up to 18000r/min, the rotation speed can be reduced by control system during drilling process.
  • Automatic lubrication system circulates lubrication to ensure smooth operation and prolonged service life of moveable parts.
  • CNC Mortiser, MSK1500
  • CNC Mortiser, MSK1500
  • CNC Mortiser, MSK1500
  • CNC Mortiser, MSK1500
