Model | |
|
|
Max. horizontal drilling dia. | Ø35mm (Single drill) | Ø35mm (Single drill) | Ø35mm (Single drill) |
Ø13mm (Multi drill) | Ø13mm (Multi drill) | Ø13mm (Multi drill) | |
Max. vertical drilling depth | 60mm | 60mm | 60mm |
Boring bit dia. | 10mm | 10mm | 10mm |
Max. working length | 2600mm | 2400mm | 2500mm |
Min. working length | 130mm | 130mm | 130mm |
Motor speed | 2840rpm/min | 2840rpm/min | 2840rpm/min |
Quantity of drills | 21x3pcs | 21x4pcs | 21x6pcs |
Motor power | 4.5kw | 6kw | 9kw |
Overall dimension | 3600*2500*1550mm | 3600*2500*1550mm | 4300*3000*1550mm |
Weight | 1260kg | 1400kg | 2200kg |

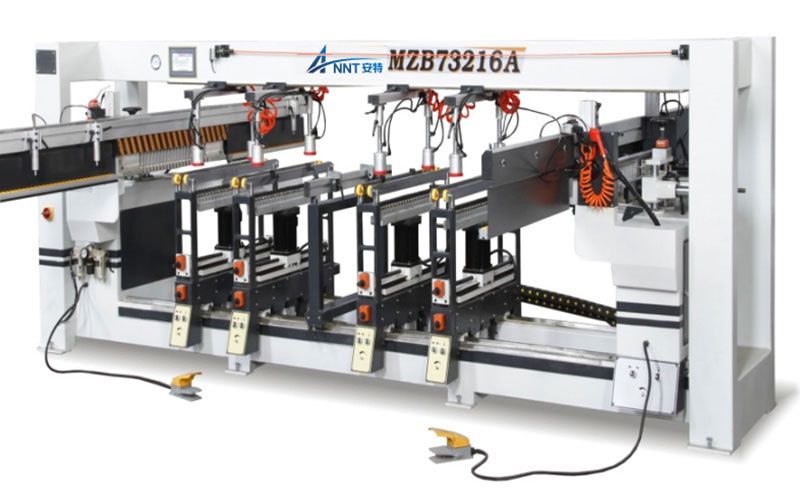

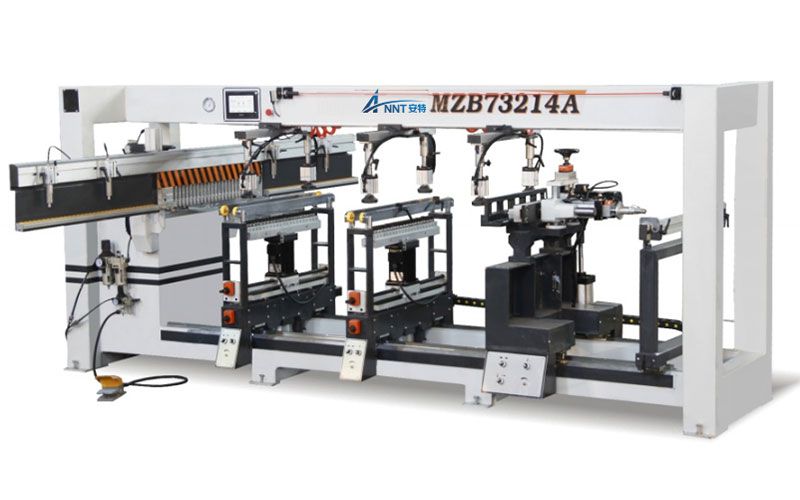

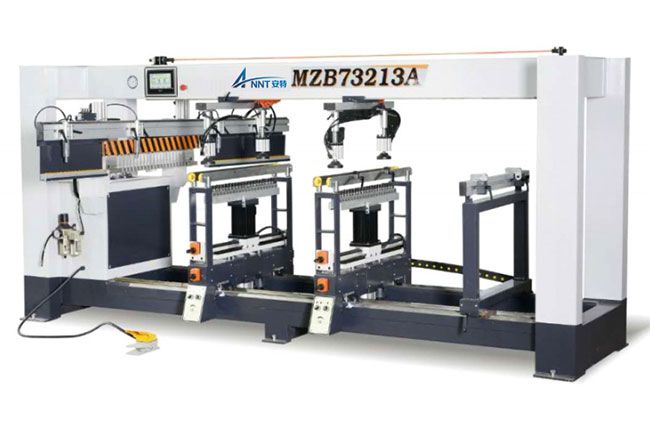

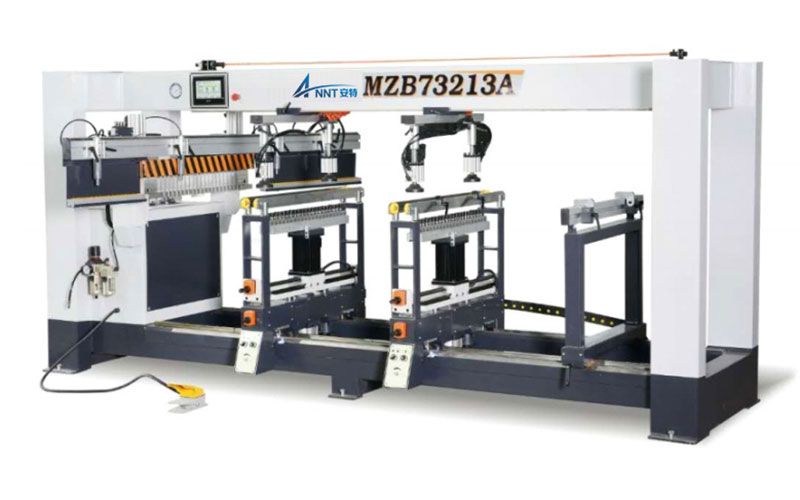

This multi row drilling machine features multiple rows of drills, can greatly improve drilling efficiency. ANNT offers models of three rows, four rows and six rows for various applications of customers.
World’s well-known brand spindle motor and imported drills, ensuring precise and stable drilling performance;

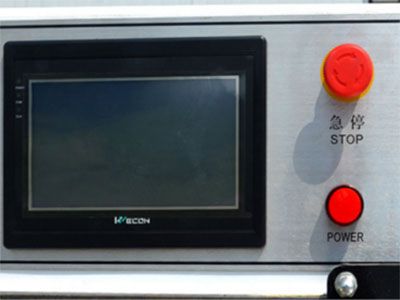

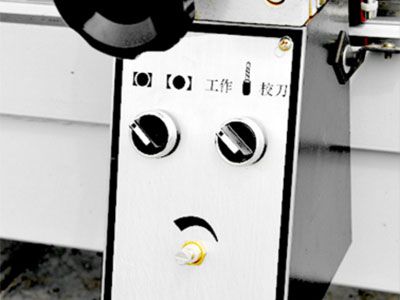

Utilizing well-known brand touch screen and PCL control system, providing easy operation while reducing failure rate;

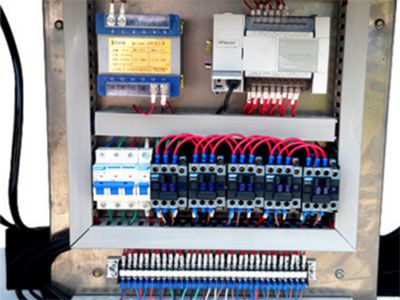

Stable electrical circuit and wiring, enabling the operation more safe;

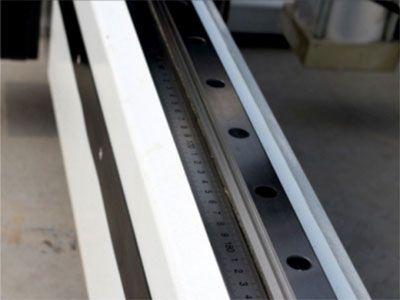

Imported linear guide, ensuring high accuracy;

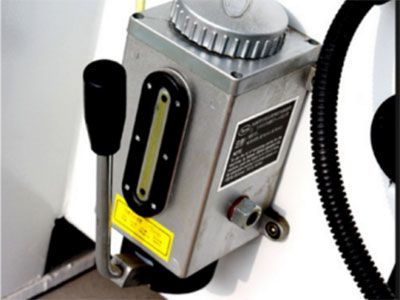

Lubrication system prolongs the service life of the machine;

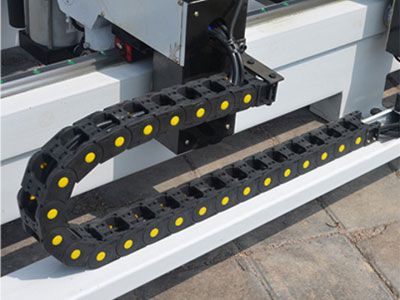

Cable guide chain protects cables while facilitating cable movement;
Fixing the position of drills, preventing inaccurate drilling position caused by the misalignment of drill row;

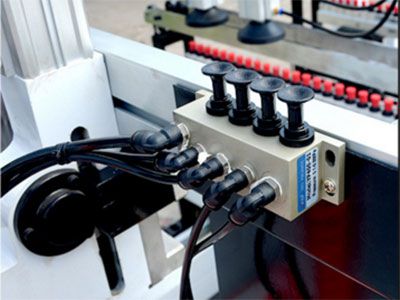

The depth and distance of drilling are controlled by photoelectric switch, guaranteeing quick and accurate positioning;

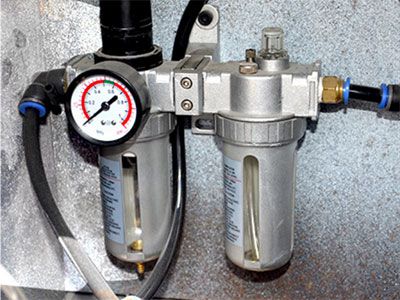

Efficient filtration of water vapor in the air to prevent water vapor from entering air cylinder, prolonging the service life of pneumatic parts;

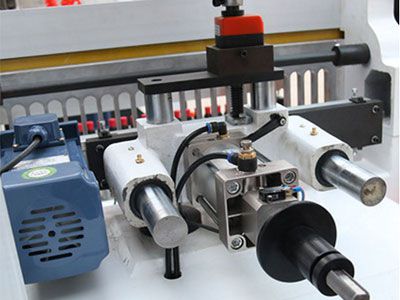

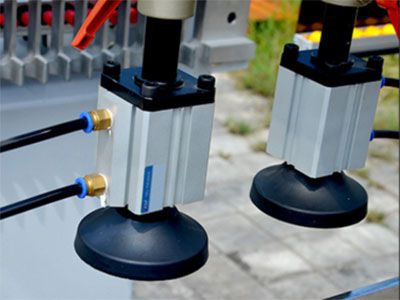

Positioning cylinder ensures high working stability;
