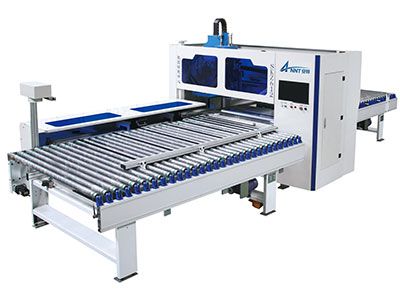

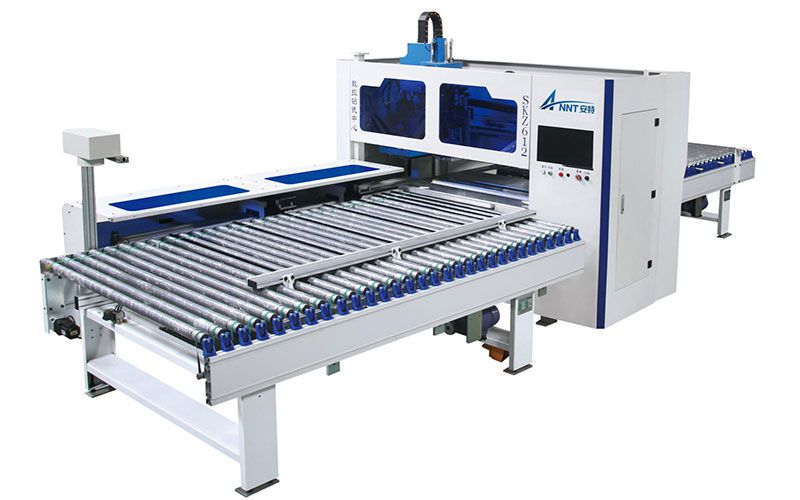

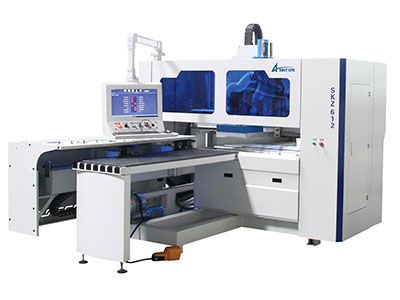

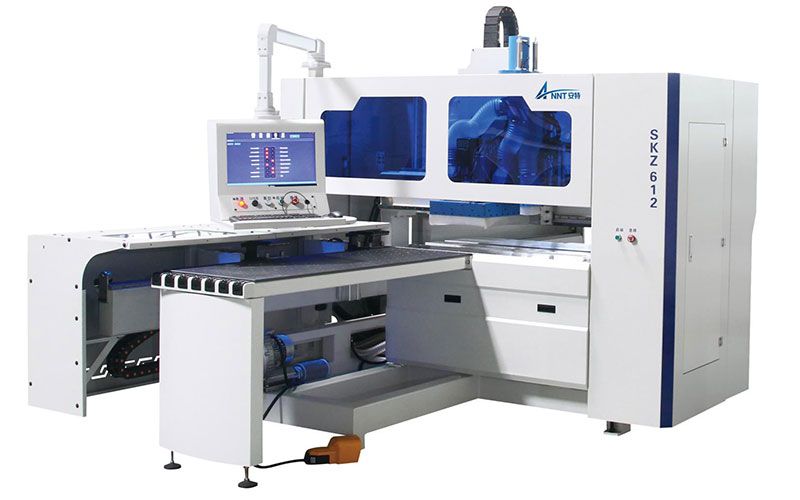

CNC Six-Side Drilling Machine

  • CNC Six-Side Drilling Machine
  • CNC Six-Side Drilling Machine

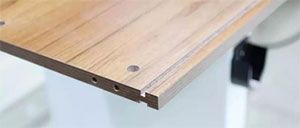

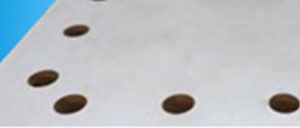

Drilling effects
  • CNC Six-Side Drilling Machine
  • CNC Six-Side Drilling Machine
Technical Data
X axis travel 4200mm
Y axis travel 1800mm
Z axis travel 250mm
Workpiece length 150mm~3050mm
Workpiece width 40mm~1200mm
Workpiece thickness 10mm~60mm
Max. travel speed of X axis 135m/min
Max. travel speed of Y axis 100m/min
Max. travel speed of Z axis 30m/min
Configurations

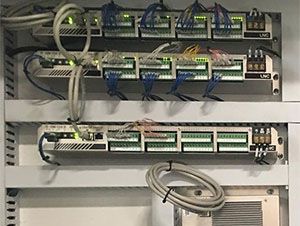

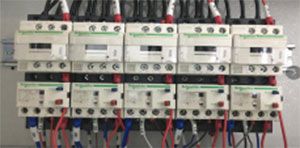

  • Electrical panel Electrical panel

  • Electrical panel
    Brand: France Schneider
    Manufactured in accordance with the requirements of CE standard, clear indication of electrical circuits and wiring, circuit diagram is offered for easy troubleshooting when any failure occurs;

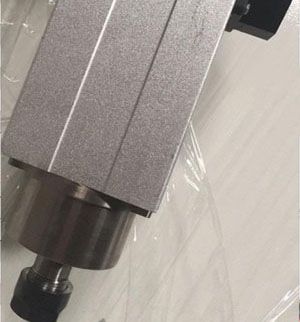

  • Spindle

  • Spindle
    Brand: Changchuan
    Two 3.5KW air-cooling spindles, spindle speed of 18000rpm/min;

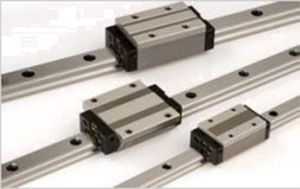

  • Linear guide and sliding block

  • Linear guide and sliding block
    Brand: Taiwan HIWIN
    Excellent dust-resistant, high precision, high-load capability, long service life;

View More

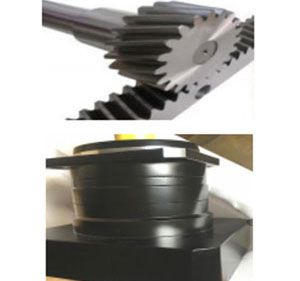

  • Transmission

  • Transmission
    Imported high precision 2M helical gear rack, Z axis with ball screw, ensuring stable operation;

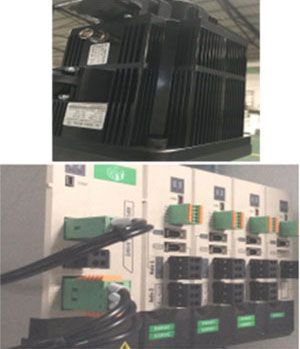

  • Drive and motor

  • Drive and motor
    High efficiency servo motor, featuring high speed and low noise;
    Built-in precision bearings deliver great torque and high positioning accuracy;

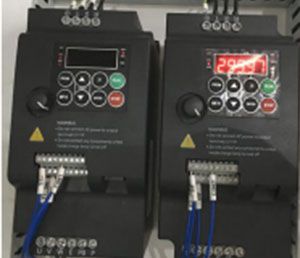

  • Inverter

  • Inverter
    Low frequency, high output torque, low noise, stable operation;

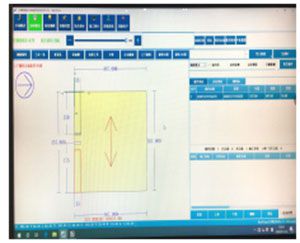

  • Control software

  • Control software
    Brand: Taiwan LNC Technology + Sanweijia
    User-friendly human-machine interface, easy operation, fast response speed;

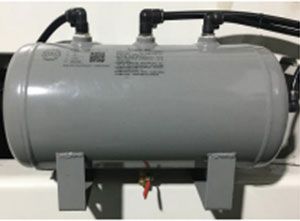

  • Air storage tank

  • Air storage tank
    Air storage tank is configured to ensure stable air pressure;

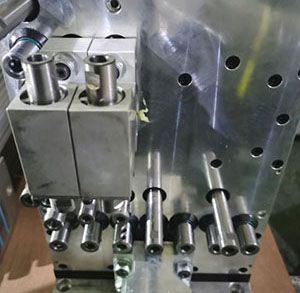

  • Drill bank

  • Drill bank
    Brand: CC

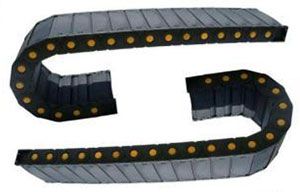

  • Drag chain

  • Drag chain
    Adopting highly flexible cables, excellent dust-resistant, corrosion resistant, anti static;
    Supporting bending radius of 150 degree;

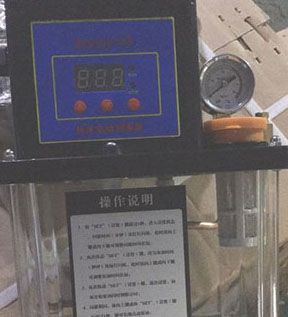

  • Lubrication system

  • Lubrication system
    Prolonging service life of machine;
