Profile Wrapping Machine, GT/PT

Profile Wrapping Machine, GT/PT

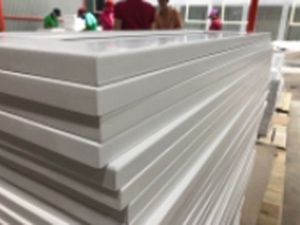

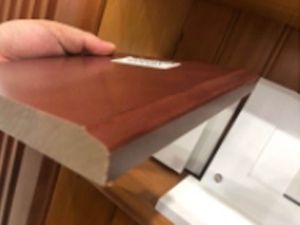

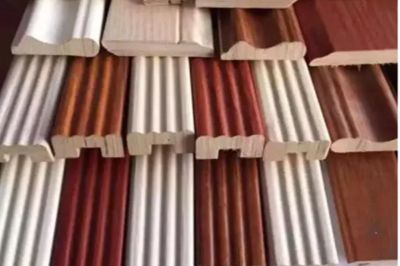

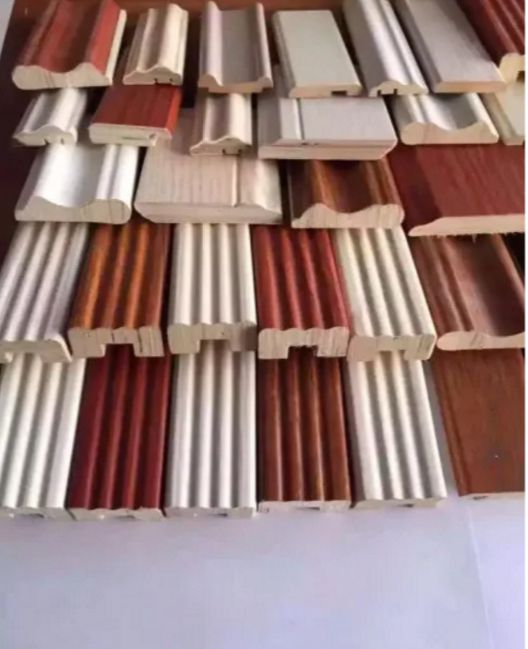

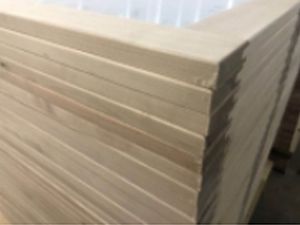

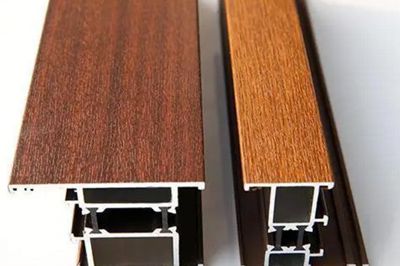

Samples
  • Profile Wrapping Machine, GT/PT
  • Profile Wrapping Machine, GT/PT
  • Profile Wrapping Machine, GT/PT
Technical Data
Model GT-3S1P5T5G GT-3S3P1B2T3G PT-6Y3P4G
Max. width of workpiece 2000mm 2000mm 2000mm
Min. width of workpiece 120mm 120mm 120mm
Max. depth of workpiece 10-50mm 10-50mm 10-50mm
Height of working table  950mm 950mm 950mm
Feeding speed 8~15m 8~15m 8~15m
Conveyor motor 5.5KW 1400r/min 5.5KW 1400r/min 5.5KW 1400r/min
Sponge sand head motor 1.5KW 1400r/min 1.5KW 1400r/min 1.5KW 1400r/min
Total power 36KW 36KW 36KW
Overall size 13100*1300*1500mm 13100*1300*1500mm 13100*1300*1500mm
Weight 2500KG 3000KG 4500KG

GT-3S1P5T5G

  • Max. width of workpiece: 2000mm
  • Min. width of workpiece: 120mm
  • Max. depth of workpiece: 10-50mm
  • Height of working table: 950mm
  • Feeding speed: 8~15m
  • Conveyor motor: 5.5KW 1400r/min
  • Sponge sand head motor: 1.5KW 1400r/min
  • Total power: 36KW
  • Overall size: 13100*1300*1500mm
  • Weight: 2500KG

GT-3S3P1B2T3G

  • Max. width of workpiece: 2000mm
  • Min. width of workpiece: 120mm
  • Max. depth of workpiece: 10-50mm
  • Height of working table: 950mm
  • Feeding speed: 8~15m
  • Conveyor motor: 5.5KW 1400r/min
  • Sponge sand head motor: 1.5KW 1400r/min
  • Total power: 36KW
  • Overall size: 13100*1300*1500mm
  • Weight: 3000KG

PT-6Y3P4G

  • Max. width of workpiece: 2000mm
  • Min. width of workpiece: 120mm
  • Max. depth of workpiece: 10-50mm
  • Height of working table: 950mm
  • Feeding speed: 8~15m
  • Conveyor motor: 5.5KW 1400r/min
  • Sponge sand head motor: 1.5KW 1400r/min
  • Total power: 36KW
  • Overall size: 13100*1300*1500mm
  • Weight: 4500KG

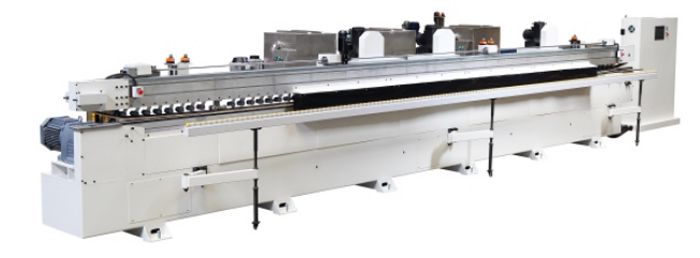

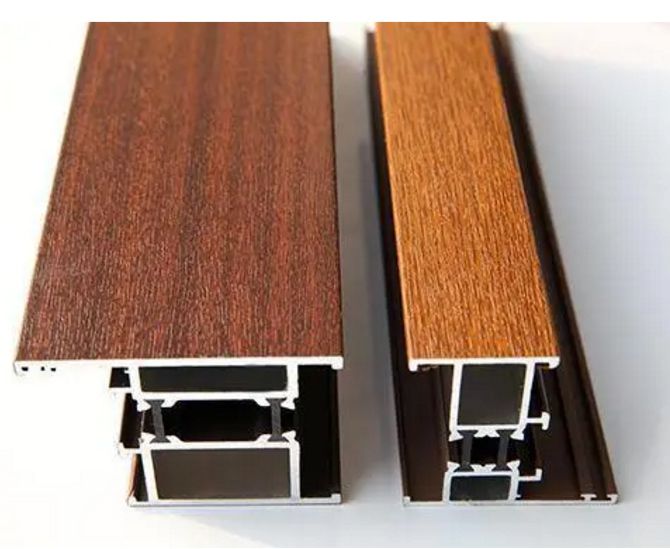

This wrapping machine is especially suitable for wrapping profiles and panels, allowing wood and aluminum profiles to be covered with PVC foil, wooden veneer, leather, etc. The profile wrapping machine is featured by easy operation, high efficiency, excellent adhesion without air bubbles, ensuring smooth finishing for a variety of profiles and panels with complex surfaces.

Features
  • Continuous wrapping of surface, sides and bottom of the workpiece in an effective manner;

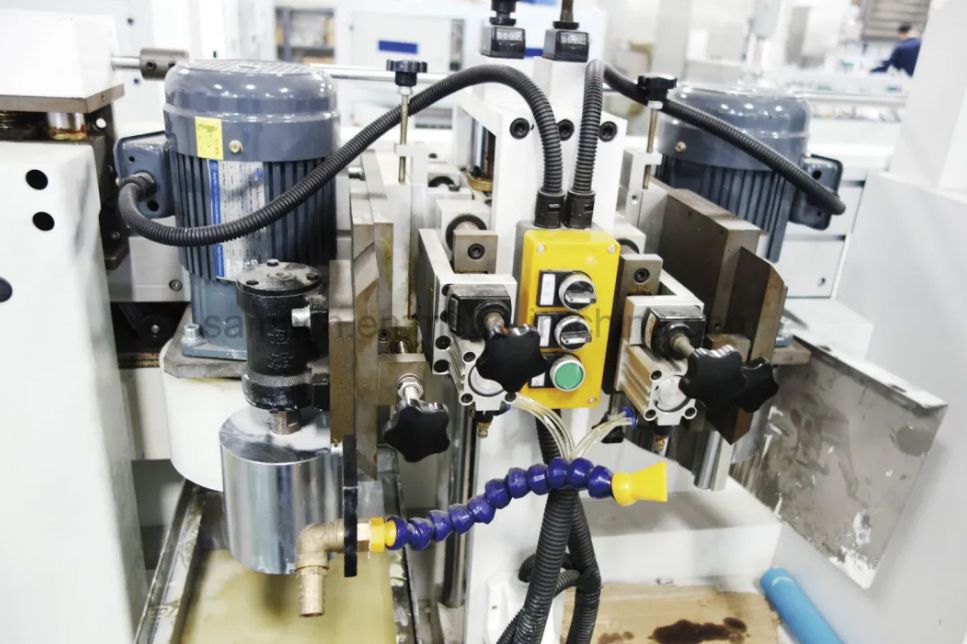

  • Feed roller and pressure roller are made of rubber and aluminum for high wear resistance and less likely to be attached with glue;
  • Heating system is typically comprised of main heating unit, secondary heating unit, profile heating unit and hot air blower, it can provide optimal processing result even in in cold weather;
  • Chain conveyor with adjustable conveying speed;
  • Profile Wrapping Machine, GT/PT
  • Profile Wrapping Machine, GT/PT
  • Profile Wrapping Machine, GT/PT
