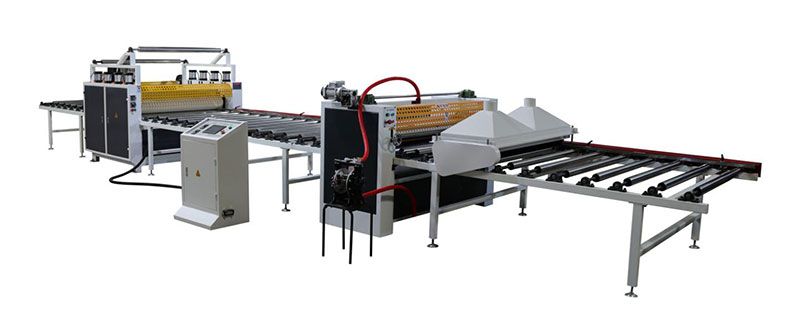

Cold Glue Laminating Machine

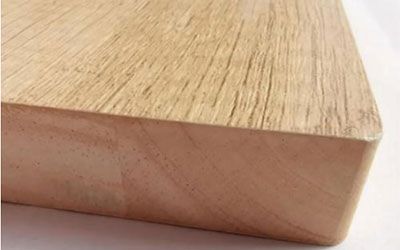

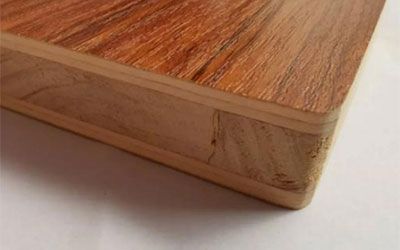

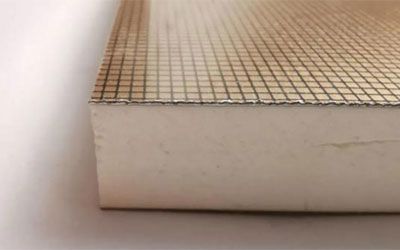

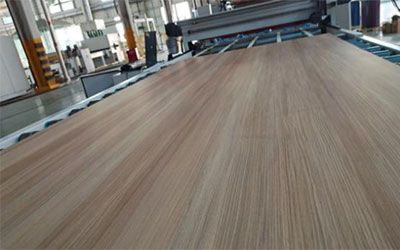

Laminating effects

Technical Data

Working table size	190*1350mm
Panel length	600mm or more
Panel width	1220mm
Panel thickness	2.5—50mm
Material feed speed	0—20m/min
Motor power	3.7kw
Heating power	10.5kw
Machine weight	4000kg
Material width	1280mm
Overall dimension	1080019001700mm
Roller diameter	190

This laminating machine is designed for bonding decorative veneer, paper, foil, film and other surface materials to various types of panel. It is an ideal wood processing machine for small and medium-sized furniture factories or speaker manufacturers.

Configuration
Infeed & outfeed conveyor, glue spreader, laminating unit, automatic material cutting unit, roller press

Applicable materials
PVC film, paper, PET, acrylic board, cling film, UV board, decorative veneer, shrink film, etc.

Functions
Automatic material feeding, gluing and pressing

Dust removal
Dust cleaning roller: Φ190*1400mm
Speed control: 0-20m/min
It can remove dust from panel surface, providing better bonding effect.

Glue conveying
Roller size: Φ80*1500mm
Conveyor size: 2000*1600mm

Gluing unit
Rubber roller
Conveyor roller
Speed control: 0-20m/min

Laminating unit
Upper rubber roller
Upper steel roller
Bottom roller 2pc
Speed control: 0-20m/min
