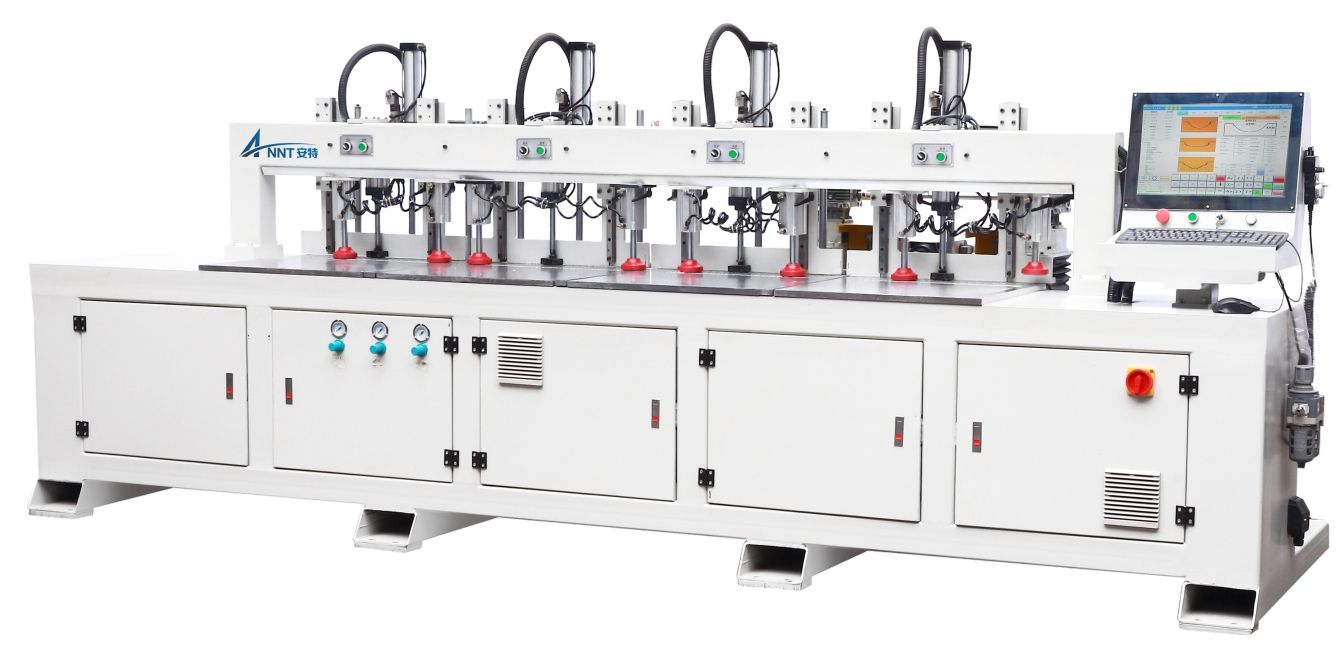

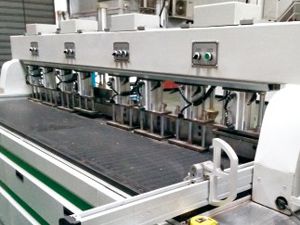

CNC Machining Center for Solid Wood, MXZ5125A

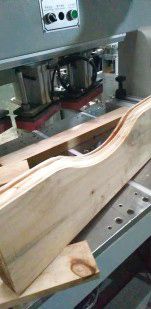

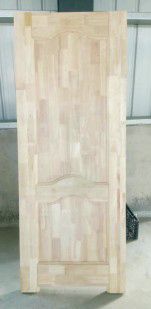

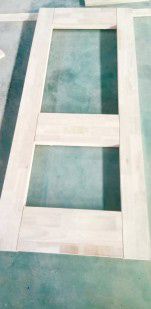

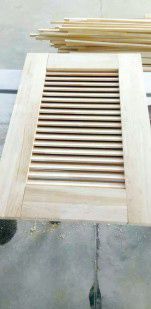

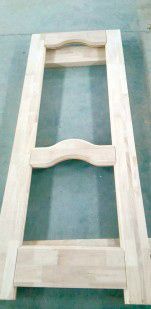

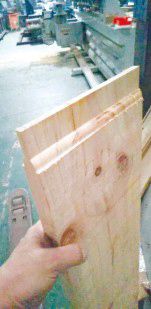

Samples
Technical Data
| Max. processing length | 2500mm |
| Max. processing thickness | 50mm |
| Max. milling speed | 10m/min |
| Max. drilling depth | 40mm |
| Max. arc machining depth | 100mm |
| Milling cutter shaft diameter | 35mm |
| Max. outer diameter of milling cutter | 180mm |
| Drill bit diameter | 3-16mm |
| Spindle rotation speed | 9000rpm |
| Total power | 31KW |
| Milling motor power | 11KW*2 |
| Drilling motor power | 4.5KW |
| Work table height | 900mm |
| Dust extraction diameter | 100mm |
| Weight | 3300kg |
| Dimension | 5000*1500*1640mm |
This solid wood CNC machining center is an automatic woodworking machine typically designed for milling and drilling of door panels, door stiles, door intermediate rails, door mullions and other door elements made out of solid wood. This CNC machining center is easy to operate, which makes the manufacturing processes of solid wood doors to be significantly simplified, thus greatly enhancing work efficiency. This machining tool can provide ideal solution to yield a higher productivity for small and medium-scale wood door manufacturers.
Features

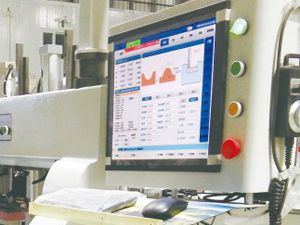

- High grade CNC control system is adopted for easy operation, it allows to create various complex shapes and styles.
- Able to processing a variety of door elements, such as door panels, door stiles, door intermediate rails, door mullions, etc.

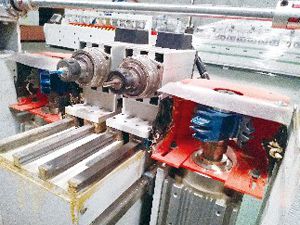

- Two spindles are rotated in forward and reverse directions to prevent workpiece edge from being damaged, ensuring high durability.
- Multi-point positioning with cylinder pressure system to clamp workpieces guarantees high processing accuracy.
- Precise processing of door panels with assembly angle of 45 degree.
Since 2003, ANNT has been providing woodworking machines to meet our customer's wood and lumber processing needs. The company has always had a strong commitment to the woodworking manufacturing industry. We know that all furniture manufacturers, wood fabricators or any wood and lumber processing companies want to make use of leading woodworking tools, we continuously strive to manufacture the high quality wood processing machinery, helping our customers stay ahead in their competitive market. Every woodworking machine such as edge banding machine or table saw we provide is custom manufactured precisely to meet customer’s needs. When you are looking for a wood processing machine that allows you to manufacture high accuracy products, our CNC machining centers can provide you with exactly what you require in an efficient manner. Please feel free to contact us to discuss your requirements of panel saw or edge bander and we'll be delighted to offer our premium quality woodworking machines.
