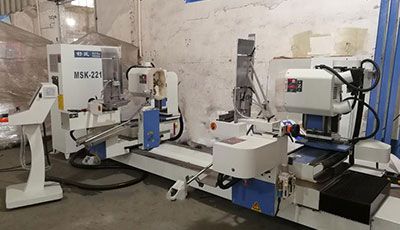

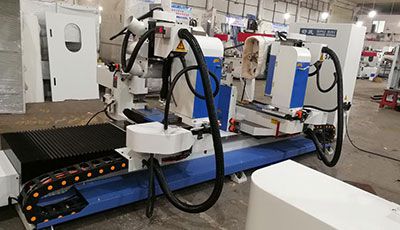

CNC Tenoning Machine, Double End, MSK22188

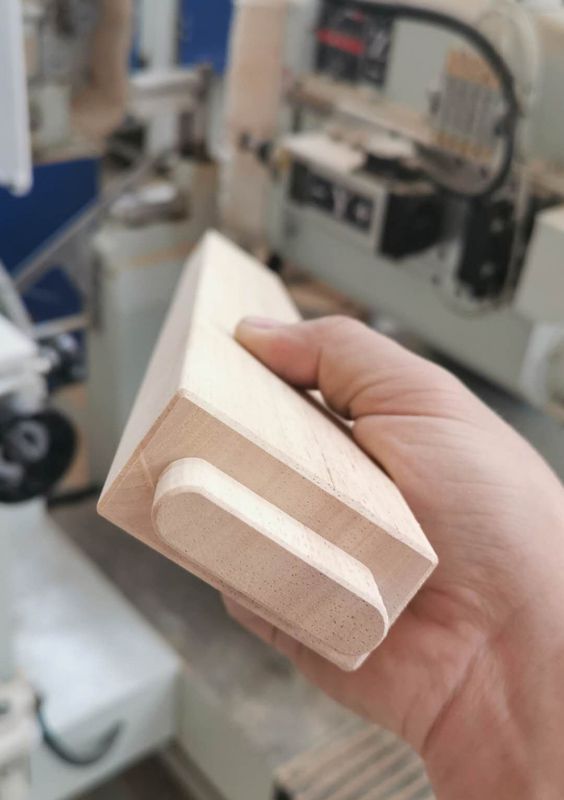

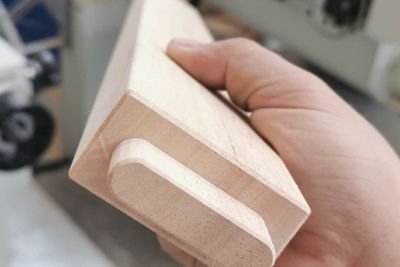

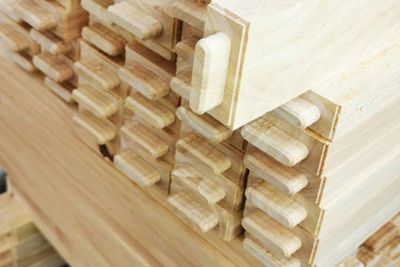

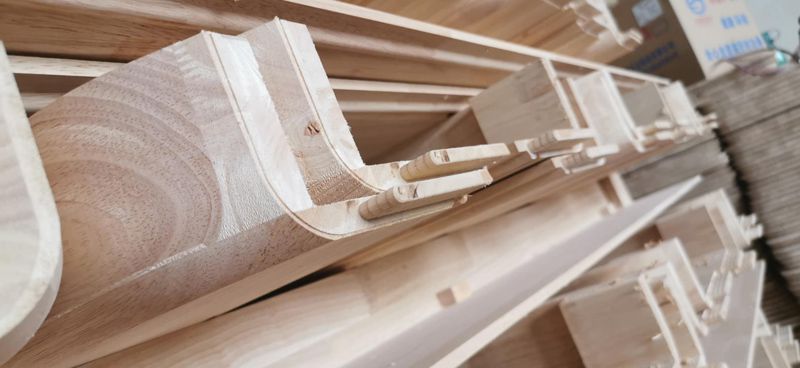

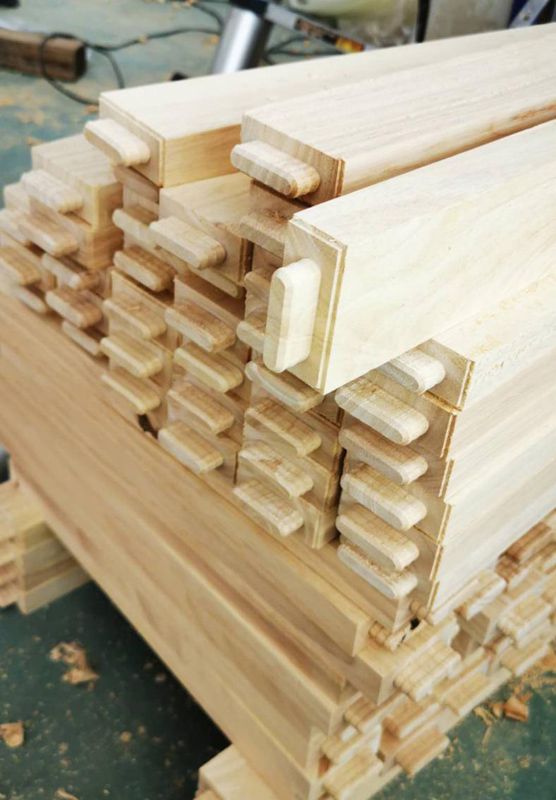

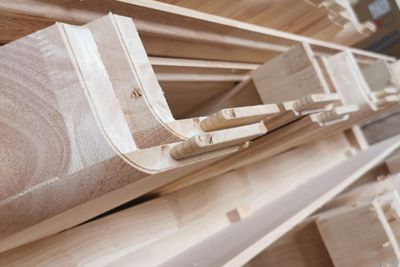

Samples
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
Technical Data
Model MSK-2218A MSK-2218B MSK-2218C MSK-2218D
Workpiece dimension Max. 2200*200*80mm Max. 2200*200*80mm Max. 2200*200*80mm Max. 2200*200*80mm
Tenon length Max. 2200mm Min. 195mm Max. 2200mm Min. 195mm Max. 2200mm Min. 195mm Max. 2200mm Min. 195mm
Tenon width Max. 180mm Max. 140mm Max. 180mm Max. 180mm
Tenon thickness Max. 70mm Max. 70mm Max. 70mm Max. 70mm
Tenon depth Max. 40mm Max. 40mm Max. 40mm Max. 40mm
Spindle motor power 5.5kw*2 5.5kw*2+2.2kw*2 5.5kw*2 5.5kw*2+2.2kw*2
Total power 16.85kw 22.05kw 20KW 26.05kw
Spindle rotation speed 12000r/min 12000r/min 12000r/min 12000r/min
Voltage 380v 380v 380v 380v
Weight 2200kg 2300kg 2500kg 2600kg
Dimension 4750*2000*1690mm 4750*2000*1690mm 4950*2200*1690mm 4950*2200*1690mm

MSK-2218A

  • Workpiece dimension : Max. 2200*200*80mm
  • Tenon length       : Max. 2200mm Min. 195mm
  • Tenon width: Max. 180mm
  • Tenon thickness: Max. 70mm
  • Tenon depth: Max. 40mm
  • Spindle motor power:5.5kw*2
  • Total power: 16.85kw
  • Spindle rotation speed: 12000r/min
  • Voltage: 380v
  • Weight: 2200kg
  • Dimension: 4750*2000*1690mm

MSK-2218B

  • Workpiece dimension : Max. 2200*200*80mm
  • Tenon length       : Max. 2200mm Min. 195mm
  • Tenon width: Max. 140mm
  • Tenon thickness: Max. 70mm
  • Tenon depth: Max. 40mm
  • Spindle motor power: 5.5kw*2+2.2kw*2
  • Total power: 22.05kw
  • Spindle rotation speed: 12000r/min
  • Voltage: 380v
  • Weight: 2300kg
  • Dimension: 4750*2000*1690mm

MSK-2218C

  • Workpiece dimension : Max. 2200*200*80mm
  • Tenon length       : Max. 2200mm Min. 195mm
  • Tenon width: Max. 180mm
  • Tenon thickness: Max. 70mm
  • Tenon depth: Max. 40mm
  • Spindle motor power: 5.5kw*2
  • Total power: 20KW
  • Spindle rotation speed: 12000r/min
  • Voltage: 380v
  • Weight: 2500kg
  • Dimension: 4950*2200*1690mm

MSK-2218D

  • Workpiece dimension : Max. 2200*200*80mm
  • Tenon length: Max. 2200mm Min. 195mm
  • Tenon width: Max. 180mm
  • Tenon thickness: Max. 70mm
  • Tenon depth: Max. 40mm
  • Spindle motor power: 5.5kw*2+2.2kw*2
  • Total power: 26.05kw
  • Spindle rotation speed: 12000r/min
  • Voltage: 380v
  • Weight: 2600kg
  • Dimension: 4950*2200*1690mm

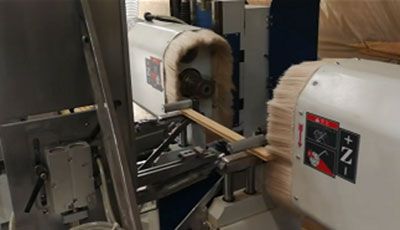

CNC double-end tenoning machine can perform automatic material loading and unloading, and double end simultaneous processing to provide high work efficiency, precise processing result while reduce labor intensity. This CNC tenoner machine is widely used for manufacturing tenons used in cabinet door, tables, chairs, beds and other furniture.

Features
  • Double end simultaneous processing enables 12 workpieces to be processed every minute.
  • Protective guard effectively prevents operators from contacting dangerous parts of the machines.

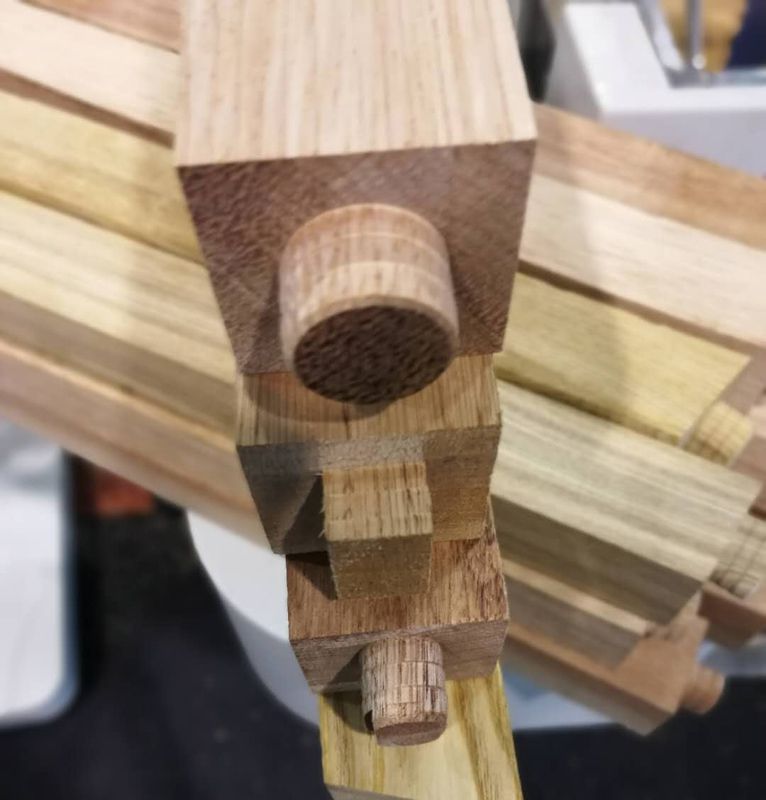

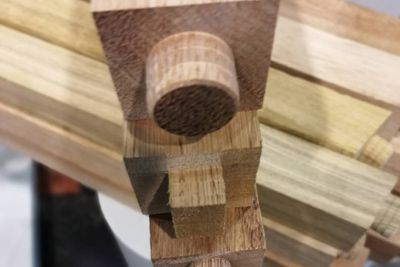

  • Able to make multitude types of tenons, such as round tenon, rectangular tenon and dowelled tenon.
  • Automatic lubrication system circulates lubrication to ensure smooth operation and prolonged service life of moveable parts.
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
  • CNC Tenoning Machine, Double End, MSK22188
