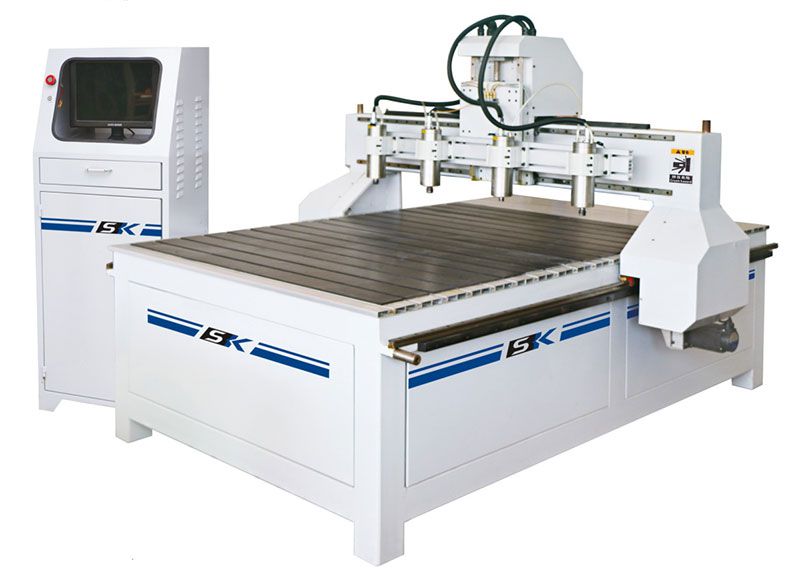

CNC Wood Router, SK-EPG Series (EPG1313/EPG1318/EPG1325 optional)
| Working area | 1300*1300/1800/2500*200mm |
| Spindle power | 1.5KW (2.2KW optional) |
| Number of spindles | 4 (customizable) |
| Spindle speed | 24000rpm/min |
| Machining accuracy | ±0.1mm |
| Max. machining speed | 15m/min |
| Max. travel speed | 30m/min |
| Control | G code, HPGL etc. |
| Voltage | 220V 50HZ (customizable) |
| Dimension | 2500*2500/3000*1800mm |
| Weight | 2000kg |

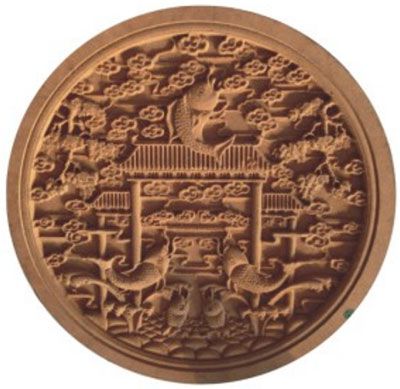

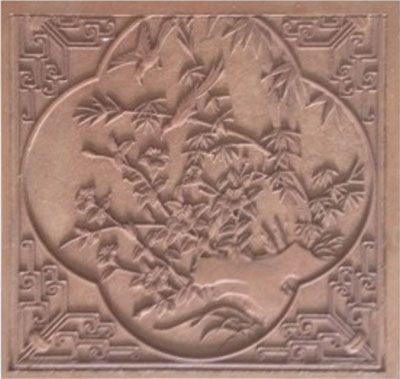

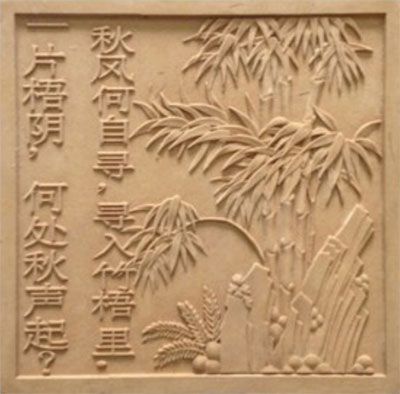

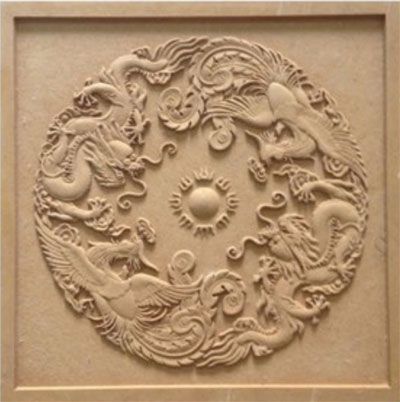

This CNC wood router is a 3D wood carving machine suitable for large batch production of various wood products, including relief sculpture, toys, furniture, doors, cabinets, decor crafts, room dividers, 3D wall panels, advertising panels, precision electronic enclosures, musical instruments, etc. The CNC carving machine is also capable of processing other materials, such as plastic and foam.
-
-

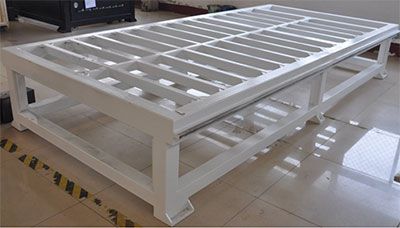

Robust welded steel structure, hardened by tempering and aging treatment, ensuring high speed operation without vibration and deformation;
-
-

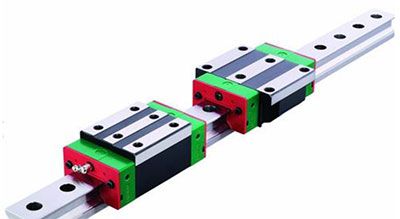

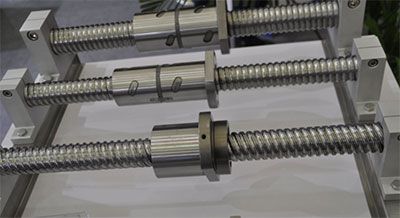

Adopting square linear guide rail and world’s well-known brand ballscrew, ensuring high precision and high speed; Y axis features dual-drive rack and pinion mechanism to provide great accuracy, smooth motion and heavy load capacity;
-
-
Capable of carving any shape and design, supporting UG, ArtCAM, Type3, CorelDraw, Proe, Artcut, JDPaint and other CAD/CAM software that can generate G-code;
-
-

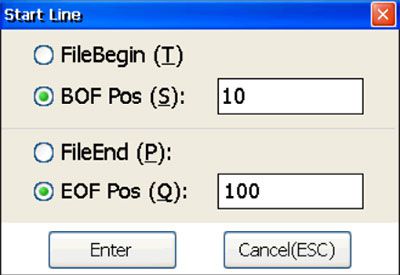

Utilizing DSP controller or PCI motion control card, can realize continuous operation when power failure occurs;
-
-

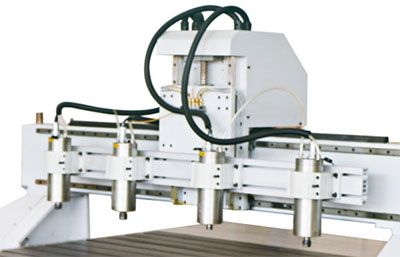

Design of multiple spindles allows this CNC router to be offered with custom configurations of cutting head quantity and motor power according to customers’ specific needs, and the spindle center spacing is adjustable to adapt to workpiece;
