Spindle Shaper
Spindle shaper is particularly used to cut various size grooves, rebates and joints, as well as processing flat or
curved surfaces.
Specifications
Spindle Shaper, MX5116Y
Max. working thickness | 120mm |
Spindle diameter | Φ35mm |
Spindle speed | 6000/8000/10000rpm/min |
Power | 4kw/5.5kw |
Sliding table length | 1100mm |
Travel of sliding table | 870mm |
Working table size | 1080*680mm |
Dimension | 1700*700*1100mm |

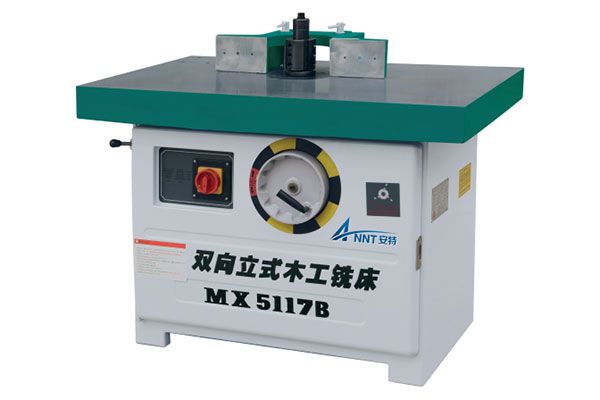

Spindle Shaper, MX5117B-2
Max. working thickness |
120mm |
Spindle diameter |
Φ35mm |
Spindle speed |
6000/8000/10000rpm/min |
Power |
4kw/5.5kw |
Sliding table length |
/ |
Travel of sliding table |
/ |
Working table size |
/ |
Dimension |
1130*670*1020mm |
Spindle rotation |
Clockwise/Counterclockwise |
Machine weight |
350kg |

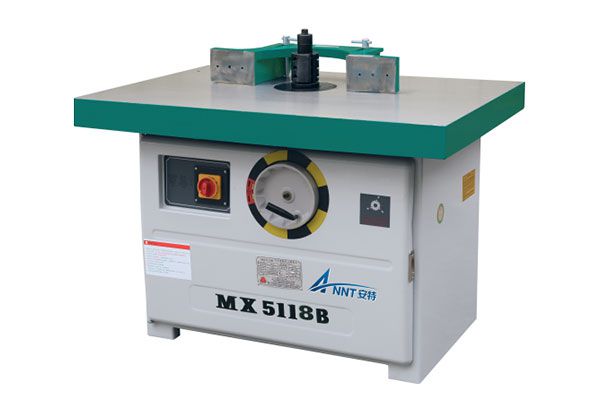

Spindle Shaper, M5118B
Max. working thickness |
120mm |
Spindle diameter |
Φ35mm |
Spindle speed |
6000/8000/10000rpm/min |
Power |
5.5kw/7.5kw |
Sliding table length |
/ |
Travel of sliding table |
/ |
Working table size |
/ |
Dimension |
1200*800*1020mm |
Spindle rotation |
/ |
Machine weight |
450kg |

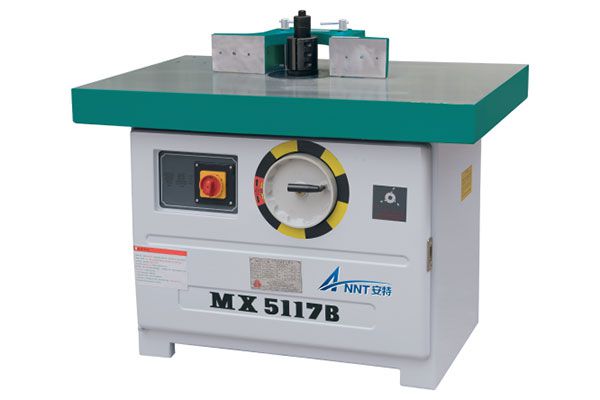

Spindle Shaper, MX5117B-1
Max. working thickness |
120mm |
Spindle diameter |
Φ35mm |
Spindle speed |
6000/8000/10000rpm/min |
Power |
4kw/5.5kw |
Sliding table length |
/ |
Travel of sliding table |
/ |
Working table size |
/ |
Dimension |
1130*670*1020mm |
Spindle rotation |
Counterclockwise |
Machine weight |
350kg |

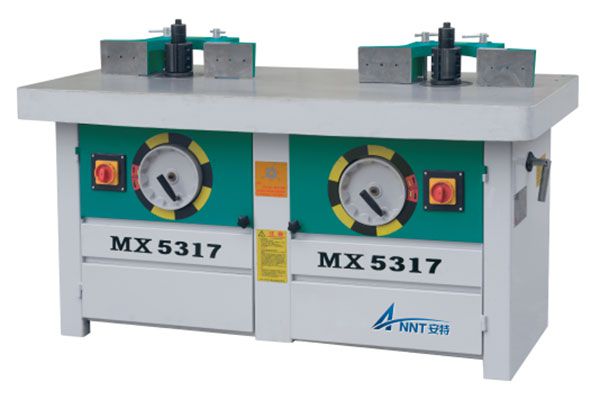

Spindle Shaper, MX5317
Max. working thickness |
120mm |
Spindle diameter |
Φ35mm |
Spindle speed |
6000/8000/10000rpm/min |
Power |
4kw×2 |
Sliding table length |
/ |
Travel of sliding table |
/ |
Working table size |
/ |
Dimension |
1800*700*1020mm |
Spindle rotation |
/ |
Machine weight |
550kg |

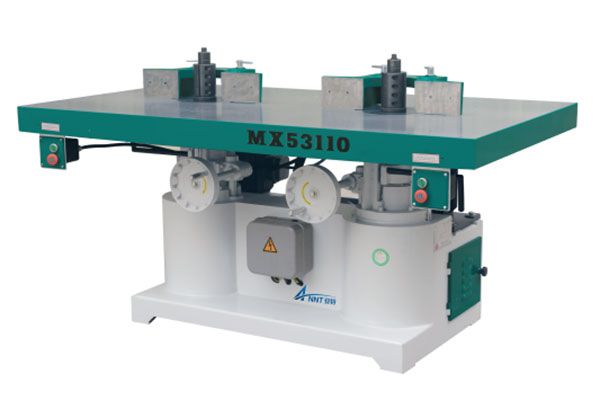

Spindle Shaper, MX53110
Max. working thickness |
120mm |
Spindle diameter |
Φ35mm |
Spindle speed |
8000/10000rpm/min |
Power |
5.5/7.5kw×2 |
Sliding table length |
/ |
Travel of sliding table |
/ |
Working table size |
/ |
Dimension |
1200*1000*1020mm |
Spindle rotation |
/ |
Machine weight |
850kg |
