Sliding Table Saw
Sliding table saw is suitable for processing high density boards, particle boards, ABS panels, PVC panels, solid wood
and other wood-based materials of similar structure and hardness.
Specifications

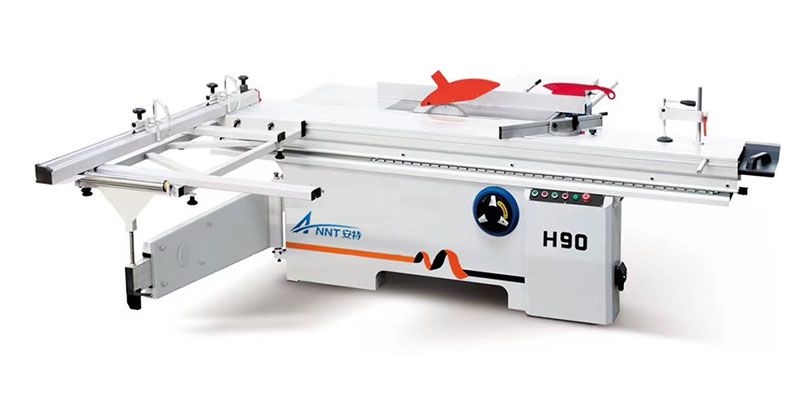

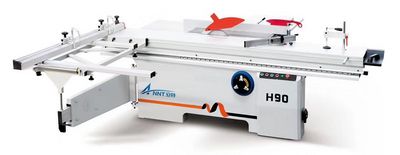

Sliding Table Saw, H90
Sliding table size |
2800*380mm |
Max. cutting length |
2800mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
90˚ |
Main motor power |
4kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
2800*3440*900mm |

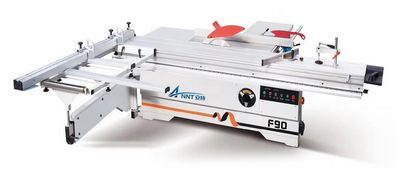

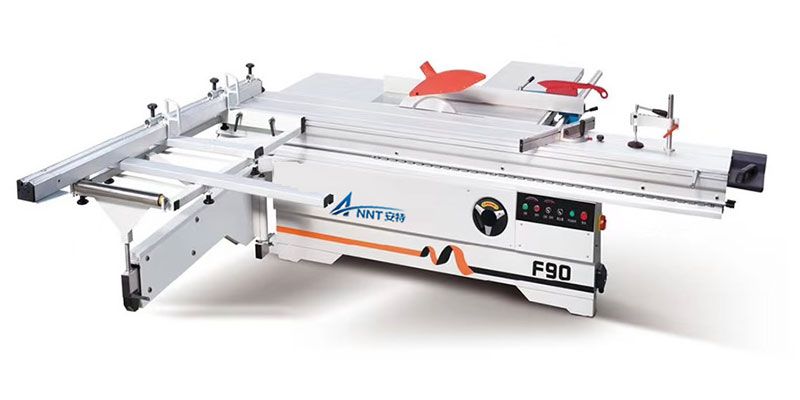

Sliding Table Saw, F90
Sliding table size |
2800*380mm |
Max. cutting length |
2800mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
90˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
2800*3490*900mm |

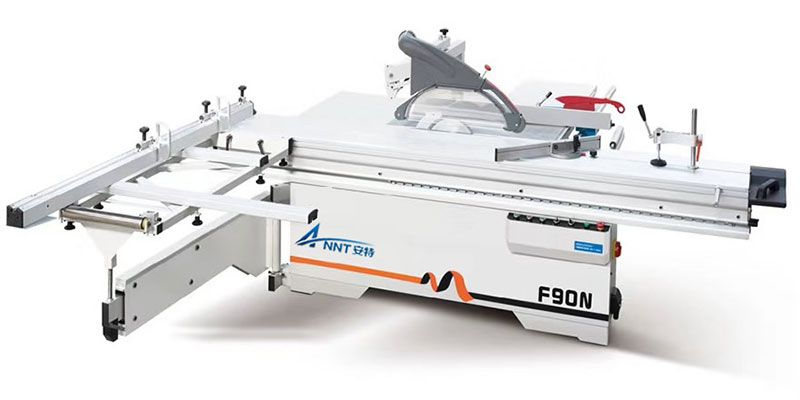

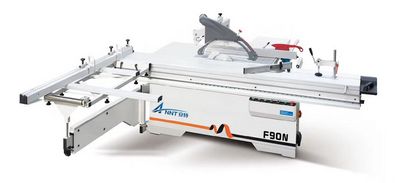

Sliding Table Saw, F90N
Sliding table size |
3000*380mm |
Max. cutting length |
3000mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
90˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3000*3490*900mm |

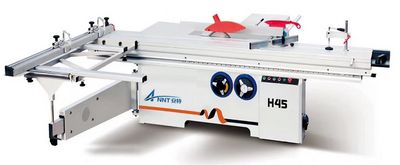

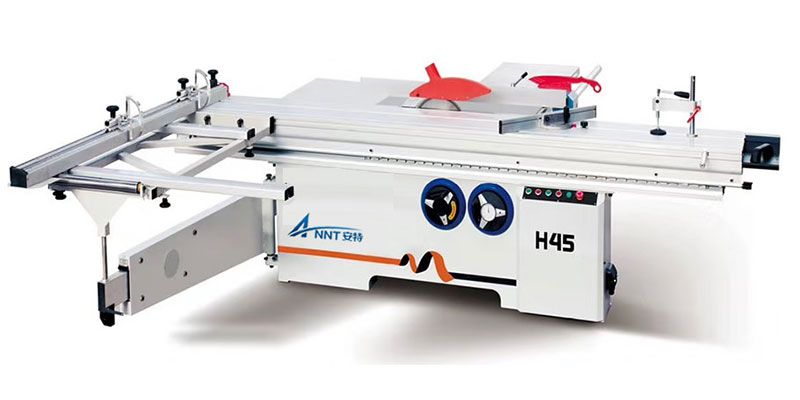

Sliding Table Saw, H45
Sliding table size |
3000*380mm |
Max. cutting length |
3000mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
0-45˚ |
Main motor power |
4kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3000*3440*900mm |

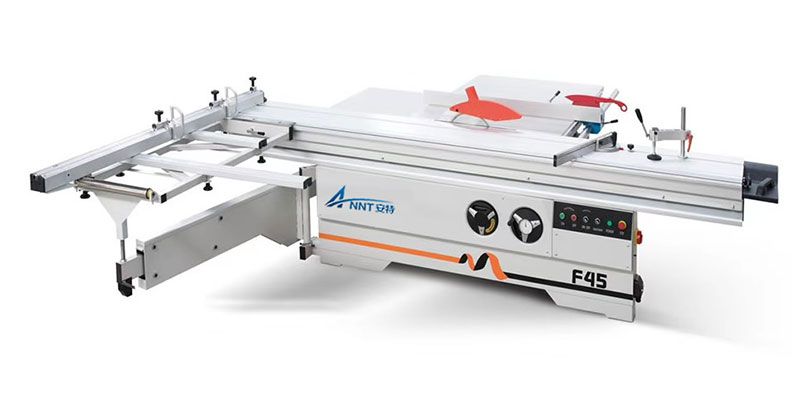

Sliding Table Saw, F45
Sliding table size |
3200*425mm |
Max. cutting length |
3200mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
0-45˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3200*3490*900mm |

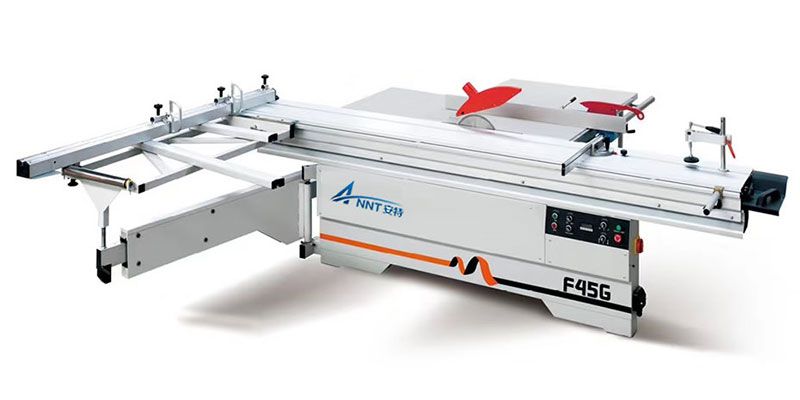

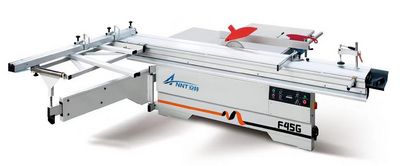

Sliding Table Saw, F45G
Sliding table size |
3200*425mm |
Max. cutting length |
3200mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
0-45˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3200*3490*900mm |

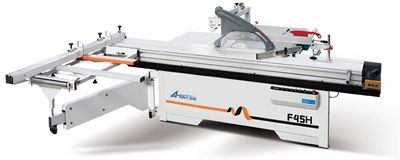

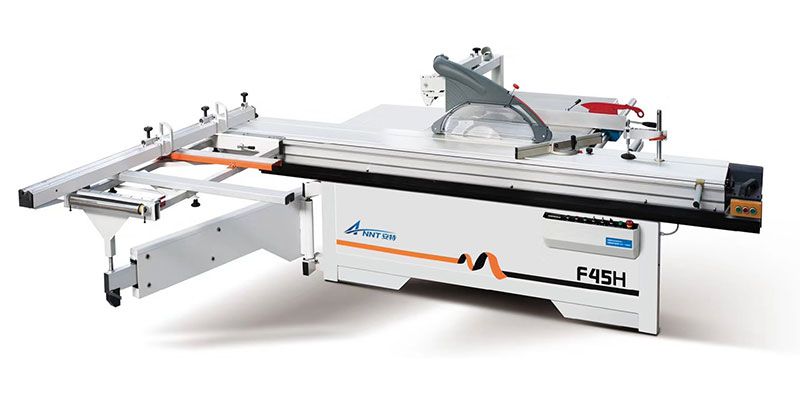

Sliding Table Saw, F45H
Sliding table size |
3200*425mm |
Max. cutting length |
3200mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
0-45˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3200*3490*900mm |

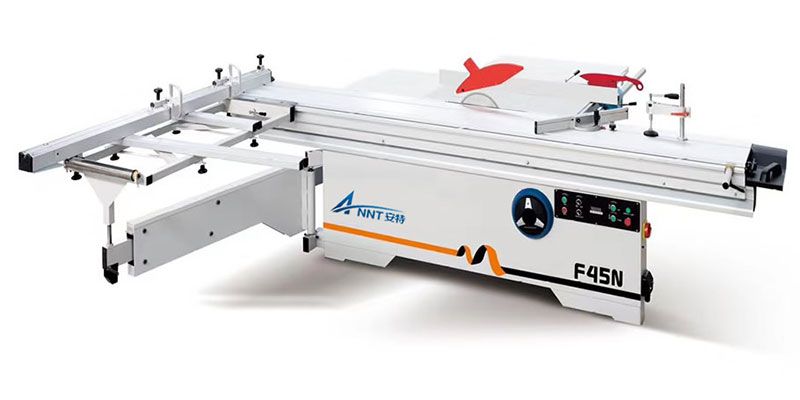

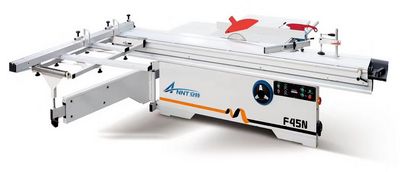

Sliding Table Saw, F45N
Sliding table size |
3200*425mm |
Max. cutting length |
3200mm |
Max. cutting width |
1300mm |
Main saw diameter |
300mm (250-400mm) |
Max. cutting height |
75mm |
Main saw speed |
4000-6000rpm/min |
Main saw arbor diameter |
30mm |
Sawing angle |
0-45˚ |
Main motor power |
5.5kw |
Scoring saw diameter |
120mm |
Scoring saw speed |
7000-8000rpm/min |
Auxiliary saw diameter |
200mm |
Auxiliary motor power |
1.1kw |
Overall dimension |
3200*3490*900mm |
