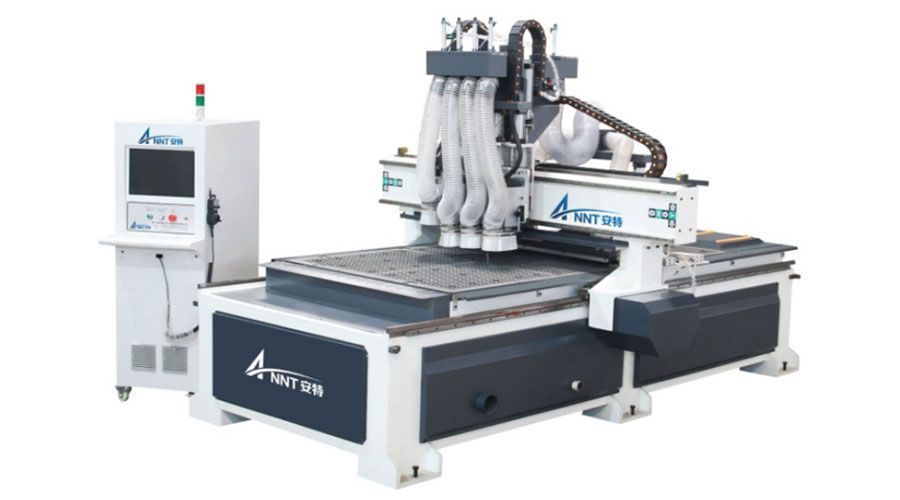

Model | |
|
|
|
Working area | 1300*2500mm | 1300*2500mm | 1300*2500mm | 1300*2500mm |
Customized sizes | available | available | available | available |
Max. travelling speed (X/Y/Z) | 80/50/20 m/min | 80/50/20 m/min | 120/50/20 m/min | 80/50/20 m/min |
Spindle power | 6kw*4 | 6kw*2 | 9kw | 6kw*4 |
Max. spindle rotating speed | 18000rpm | 18000rpm | 24000rpm | 18000rpm |
Vertical driller power | - | 2.2kw | 2.2kw | - |
Vertical driller rotating speed | - | 4000rpm | 4000rpm | - |
ATC capacity | - | 16 (12,20 optional) | - | - |
Vacuum pump power | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
Air extraction volume | 250m³/h | 250m³/h | 250m³/h | 250m³/h |
Total power | 18kw | 20.2kw | 18kw | 18kw |
Overall size | 3800*2200*2000mm | 3800*2200*2000mm | 3800*2200*2000mm | 9800*2200*2000mm |
Weight | 2100kg | 2100kg | 2100kg | 3000kg |
Control system
Providing high-speed and high-precision of interpolations, which can satisfy the requirements of high level turn-milling function; Supporting Web-Access cloud monitoring system, allowing operators to easily monitor information from all machines by browsing web page anytime.
High-speed air cooling spindle
Do the work of cutting, slotting, vertical drilling and irregular shape routing as per the program's instruction.
Servo driver & motor
Low noise operation with high-speed torque.
Guide rail & slider
Dust-proof performance, high precision, heavy-duty and long service life.
Inverter
Multiple control modes, large torque output when low frequency, fast dynamic response and strong overload capacity, supporting automatic quick changing of spindles, with easy operating.

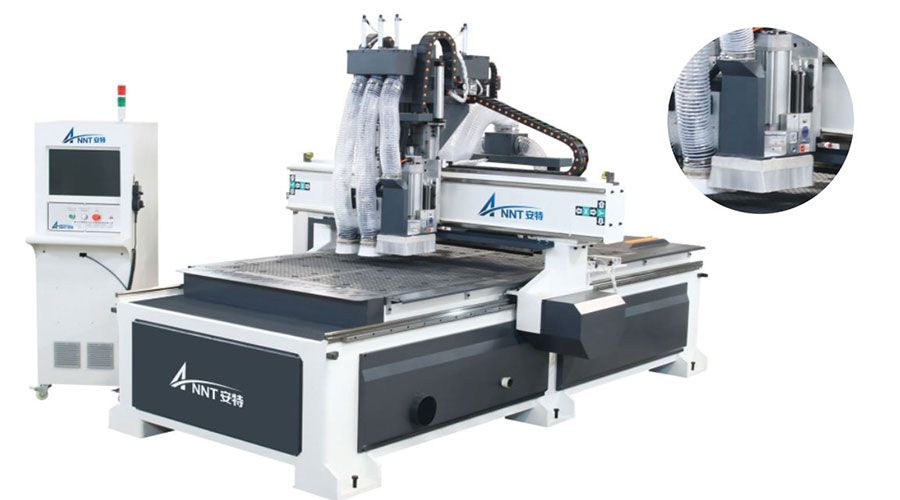

Vertical drilling
4+5 structure, automatically change the drill as per program setting
Auto lubrication system
To supply the lubricating oil to guide rails, easily to implement the regular maintenance of the machine.
Drag chain & cables
Excellent dust-proof, anticorrosion, anti-static performance, support for 150-degree bends, effectively protect the cable.
Speed reducer
Connecting with the motors, instead of traditional belt driving, ensuring higher torque and accuracy.
Worktable
Adopt European design, the worktable is divided into 6 zones, can adsorb different size materials. Featuring strong adsorption, high temperature resistance and corrosion resistance.
Tool calibrator
Bits setting automatically for Z axis, to ensure high precision of cutting, slotting and drilling.
Roller conveyor
Whatever the machine is equipped with loading function or not, it helps worker push the panels into the worktable easily.
Positioning cylinder
Used for panel positioning quickly and easily.
Vacuum pump
5.5KW/7.5KW/11KW is optional. The efficiency of 7.5kw pump is up to 250m3/hour (Dry vacuum pump is optional).

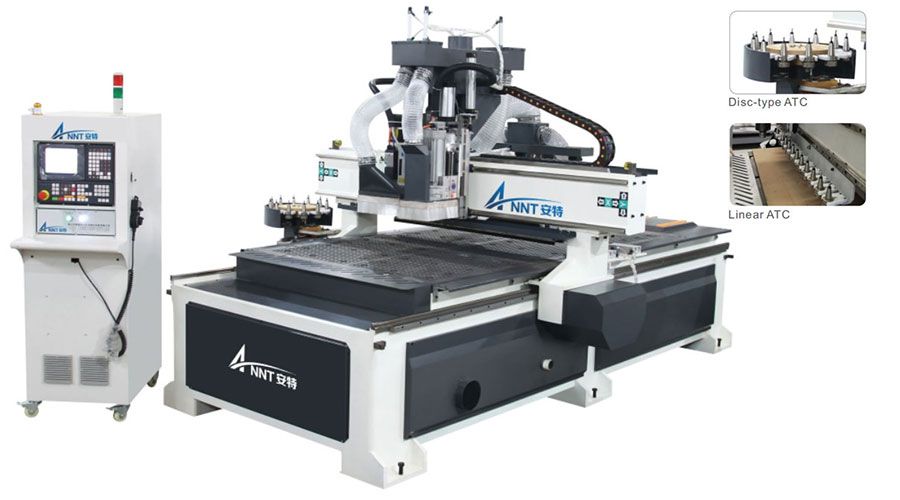

Linear ATC
Automatically pick up the tools from magazine.
Disc type ATC
12, 16, 20 are optional, automatically pick up the tools from magazine.

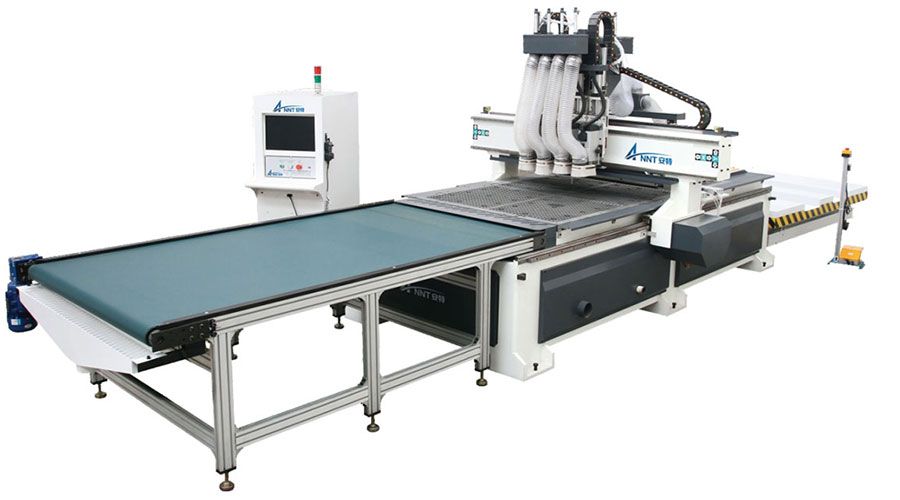

Auto loading
The large panel on the lifting table can be automatically pulled to the position by utilizing positioning device with suction cup for processing
Auto loading
The large panel on the lifting table can be automatically pulled to the position by utilizing positioning device with suction cup for processing.
